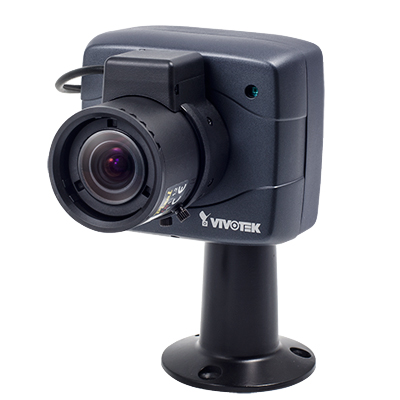

VIVOTEK introduces its IP8173H 3 megapixel WDR mini box IP camera
Product Profile
VIVOTEK's IP8173H network camera features a 3 megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combine the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eyes. The IP8173H can be widely applied in high contrast environments such as lobby entrances and more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.
The IP8173H features a mini-box camera design concept with a compact size to fit into different types of enclosures. With the capability to fit to a CS-mount lens, it provides flexible monitoring in all types of environments. With all of these features mentioned above, the camera is the best choice for retail, government, industrial, hotel security and city surveillance.
Technical Specification
Make | VIVOTEK |
---|---|
Manufacturer | VIVOTEK |
Category | IP Cameras products |
Model code | IP8173H |
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 2048 x 1536 resolution Digital (DSP): Digital Specialist Type: Network Sensitivity Lux: 0.001 Auto Iris: AI Direct Drive: DD Lens Mount: CS mount Motion Activated: MotionActivated Focal Length mm: 2.8 ~ 8 Wide Dynamic Range: WideDynamicRange Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/5 ~ 1/32,000 sec S/ N (Signal/ Noise) Ratio dB: > 50 Mini or Compact: MiniorCompact Zoom: Zoom Compression Type: H.264, MJPEG & MPEG-4 |
|
Electrical Specifications |
Voltage: PoE Power Consumption: 4.4 W |
Network Properties |
Image Frame Rate: 20 fps Interface: 10Base-T/100 BaseTX Ethernet (RJ-45) Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
Physical Specifications |
Weight g: 178 Dimensions mm: 39 x 80 x 70 |
Environmental Specifications | Operating Temperature oC: 0 ~ 50 C (32 ~ 122 F) |
System Requirements |
Operating System: Microsoft Windows 7/Vista/XP/2000 Web Browser: Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x |
Additional info | Vivotek IP8173H 3-megapixel WDR mini box IP camera captures both the dark and bright parts of an image and combine the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eyes. The IP8173H can be widely applied in high contrast environments such as lobby entrances and more. The P-iris lens controls the iris with extreme precision. |
