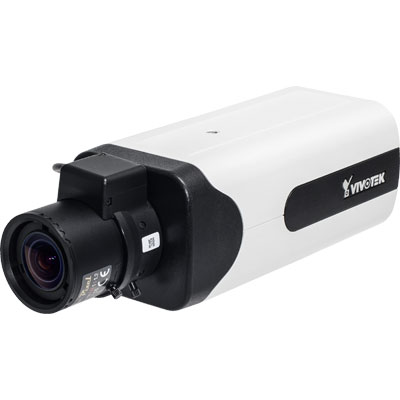

Vivotek IP8155HP 1.3MP colour monochrome box network camera
Technical Specification
Features:
- Make: VIVOTEK
- Model code: IP8155HP
- Series: Fixed Series
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Vivotek IP8155HP is a 1.3MP colour monochrome box network camera that features the new improved Wide Dynamic Range Technology WDR Pro II, it provides extreme visibility in high light contrast environments with 4-shutter capture method. It also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor.
Read more| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | IP Cameras products |
| Model code | IP8155HP |
| Series | Fixed Series |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 1.3 MP resolution Digital (DSP): Digital Specialist Type: Network Sensitivity Lux: 0.001 Motion Activated: MotionActivated Focal Length mm: 2.8 ~ 8 Wide Dynamic Range: WideDynamicRange Electronic Shutter Range: 1/5 ~ 1/10,000s S/ N (Signal/ Noise) Ratio dB: 64 Compression Type: H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 14.4 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T/100 BaseTX Ethernet (RJ-45) Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Physical Specifications |
Weight g: 623 Dimensions mm: 210 x 70 x 63 |
| Environmental Specifications | Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) |
| System Requirements |
Operating System: Microsoft Windows 8/7/Vista/XP/2000 Web Browser: Mozilla Firefox 7~10 (streaming only) Internet Explorer 7/8/9/10 |
| Additional info | Vivotek IP8155HP is a 1.3MP colour monochrome box network camera that features the new improved Wide Dynamic Range Technology WDR Pro II, it provides extreme visibility in high light contrast environments with 4-shutter capture method. It also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. |
