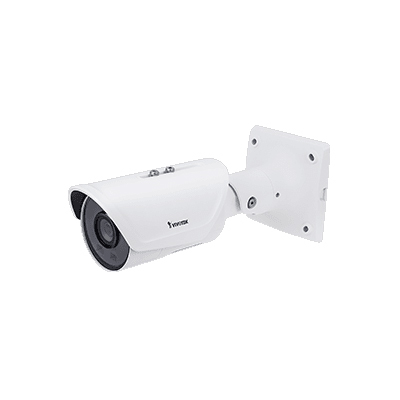

VIVOTEK IB9387-H outdoor bullet network camera
Technical Specification
Features:
- Make: VIVOTEK
- Model code: IB9387-H
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
- Resolution: 2560 x 1920 resolution
Additional info:
30 fps @ 2560x1920 H.265 Compression Technology 3.6 mm, Fixed Focal Smart Stream III to Optimize Bandwidth Efficiency SNV (Supreme Night Visibility) for Low Light Conditions WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments Built-in IR Illuminators, Effective up to 30 Meters Smart IR Technology to Avoid Overexposure Smart Motion Detection to Reduce False Alarms Trend Micro IoT Security Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Read more| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | IP Cameras products |
| Model code | IB9387-H |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 2560 x 1920 resolution Digital (DSP): 1 Sensitivity Lux: 0 ~ 0.06 Auto Iris: 1 Direct Drive: 1 Focal Length mm: 3.6 Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/5 sec. to 1/32,000 sec. S/ N (Signal/ Noise) Ratio dB: 52 Compression Type: H.265, H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 8 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45) Network Protocols: 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Physical Specifications |
Weight g: 1,142 Dimensions mm: 118 x 118 x 266 |
| Environmental Specifications |
Protection: IP66, IP67, IK10 Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 90 |
| System Requirements |
Operating System: Microsoft Windows 8/7, Mac 10.12 (Chrome only) Web Browser: Chrome 58.0 or above, Internet Explorer 10/11 |
