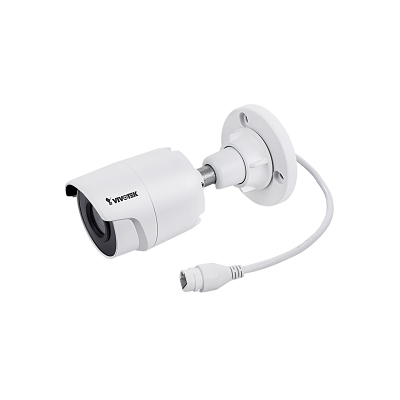

VIVOTEK IB9360-H H.265 outdoor bullet network camera
Technical Specification
Features:
- Make: VIVOTEK
- Model code: IB9360-H
- Chip Inch Size: 1/3 inch
- Resolution: 1920 x 1080 resolution
- Digital (DSP): 1
Additional info:
H.265 Compression Technology 30 fps @ 1920x1080 (WDR Pro on) SNV (Supreme Night Visibility) for Low Light Conditions WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments Smart Stream III to Optimize Bandwidth Efficiency Built-in IR Illuminators, Effective up to 30 Meters Trend Micro IoT Security Weather-proof IP66-rated and Vandal-proof IK10-rated Housing Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Read more| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | IP Cameras products |
| Model code | IB9360-H |
|
Chip Inch Size: 1/3 inch Resolution: 1920 x 1080 resolution Digital (DSP): 1 Sensitivity Lux: 0 ~ 0.065 Auto Iris: 1 Direct Drive: 1 Focal Length mm: 3.6 Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/5 sec. to 1/32,000 sec. S/ N (Signal/ Noise) Ratio dB: 68 Zoom: 1 Compression Type: H.265, H.264, MJPEG |
|
| Electrical Specifications |
Voltage: PoE Power Consumption: 6.49 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45) Network Protocols: 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Physical Specifications |
Weight g: 530 Dimensions mm: 91 x 177 |
| Environmental Specifications |
Protection: IP66, IK10 Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 90 |
| System Requirements |
Operating System: Microsoft Windows 8/7, Mac 10.12 (Chrome only) Web Browser: Chrome 58.0 or above, Internet Explorer 10/11 |
| Additional info |
|
| Download PDF version | |
