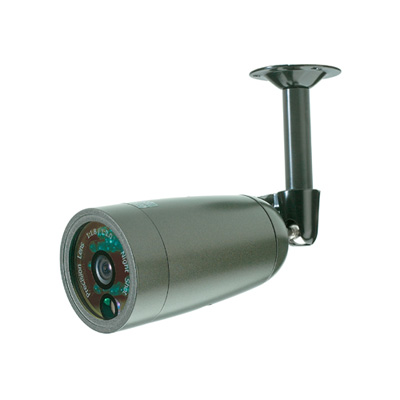

Visionhitech VN50C-W4IR 380 TVL CCTV camera
Technical Specification
Features:
- Make: Visionhitech
- Model code: VN50C-W4IR
- Chip Inch Size ": 1/3 inch
- Resolution TVL: 380
- Digital (DSP): Digital
| Make | Visionhitech |
|---|---|
| Manufacturer | Visionhitech Co., Ltd |
| Category | IP Cameras products |
| Model code | VN50C-W4IR |
|
Chip Inch Size ": 1/3 inch Resolution TVL: 380 Digital (DSP): Digital Focal Length mm: 4.3 Picture Elements HxV: 512 x 492 Auto Gain Control: AutoGainControl White Balance: WhiteBalance Gamma Correction: 0.45 Electronic Shutter range: 1/60~1/100,000 sec S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal Signal Mode: PAL, NTSC Video Output: 1.0Vp-p Composite. 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 VDC Power Consumption: 280 mA |
| Physical Specifications |
Dimension mm: 50 x 94 Weight g: 800 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: IP68 Operating Humidity %: < 90 |
