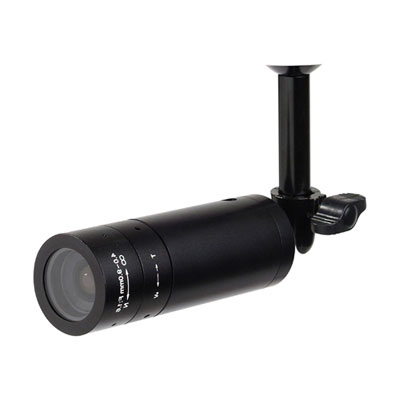

Visionhitech VB37B-WVF IP66 rated bullet camera
Technical Specification
Features:
- Make: Visionhitech
- Model code: VB37B-WVF
- Chip Inch Size ": 1/3 inch
- Resolution TVL: 420
- Digital (DSP): Digital
Additional info:
Visionhitech VB37B-WVF is a bullet camera that is rated with IP66.
Read more| Make | Visionhitech |
|---|---|
| Manufacturer | Visionhitech Co., Ltd |
| Category | IP Cameras products |
| Model code | VB37B-WVF |
|
Chip Inch Size ": 1/3 inch Resolution TVL: 420 Digital (DSP): Digital Focal Length mm: 4 ~ 9 Picture Elements HxV: 512 x 492 Auto Gain Control: AutoGainControl Gamma Correction: 0.45 Electronic Shutter range: 1/60 ~ 1/100,000 s S/ N (Signal/ Noise) Ratio dB: >50 Synchronisation: Internal Signal Mode: EIA, CCIR Video Output: 1.0Vp-p Composite. 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 100 mA |
| Physical Specifications |
Dimension mm: 37 x 84 Weight g: 410 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: IP66 Operating Humidity %: < 90 |
| Additional info | Visionhitech VB37B-WVF is a bullet camera that is rated with IP66. |
