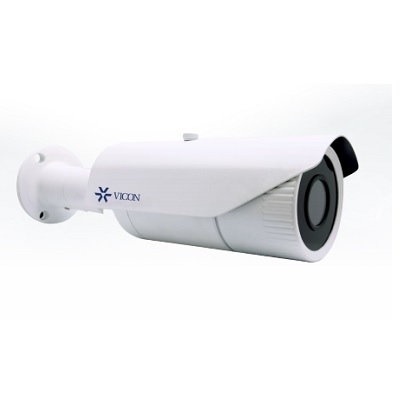

Vicon V942B-W310MIR-XS network outdoor bullet camera
Technical Specification
Features:
- Make: Vicon
- Model code: V942B- W310MIR-XS
- Series: V940B SERIES
- Chip Inch Size: 1/2 inch
- Colour Type: Colour / Monochrome
Additional info:
2 MP, 4 MP and 5 MP models; starlight (ultra-high- sensitivity) 2 MP model provides high-quality video even in extremely low-light environments H.265/H.264 compression True WDR (120 dB); 2 MP model with 132 dB WDR Smart IR LED technology (98 ft/30 m range) Smart encoding Motorised zoom and focus varifocal lens 0.01 lux low light capabilities (color)
Read more| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | IP Cameras products |
| Model code | V942B- W310MIR-XS |
| Series | V940B SERIES |
|
Chip Inch Size: 1/2 inch Colour Type: Colour / Monochrome Resolution: 1920 x 1080 resolution Digital (DSP): 1 Specialist Type: Network Sensitivity Lux: 0.0 ~ 0.01 Auto Iris: 1 Direct Drive: 1 Motion Activated: 1 Focal Length mm: 3.6 - 10 mm Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1 ~ 1/30,000 s Signal Mode: PAL, NTSC Compression Type: H.264, H.265, M-JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 10 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: IPv4/IPv6, TCP, HTTP, HTTPS, RTSP, RTCP, RTP, SMTP, DHCP, NTP, FTP, DDNS, UDP, uPnP, ARP, QoS, IGMP, SNMP (V3), TLS, SSL, 802.1x, PPPoE, DNS, ICMP |
| Physical Specifications |
Weight g: 950 Dimensions mm: 85 x 90 x 300 |
| Environmental Specifications |
Protection: IP67 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: Internet Explorer® (min IE8) |
| Additional info |
|
