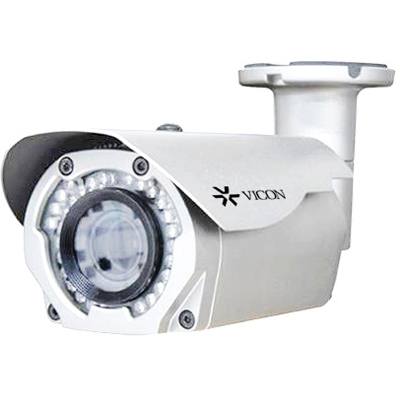

Vicon V922B-W551MIR-A1 network bullet camera
Technical Specification
Features:
- Make: Vicon
- Model code: V922B-W551MIR-A1
- Chip Inch Size: 1/2.8 inch
- Colour Type: True Day / Night
- Resolution: 2MP resolution
Additional info:
1080p resolution (1920x1080) Color: 0.35 lux; BW: 0.013 lux (IR LEDs off) 5.1-51 mm motorised focus and zoom lens (10x) True WDR (120 db) H.264 high-profile and MPEG-4 compression IR LEDs (82 ft/25 m range) PoE+ or 12 VDC
Read more| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | IP Cameras products |
| Model code | V922B-W551MIR-A1 |
|
Chip Inch Size: 1/2.8 inch Colour Type: True Day / Night Resolution: 2MP resolution Digital (DSP): 1 Specialist Type: Network Sensitivity Lux: 0.013 ~ 0.35 Auto Iris: 1 Direct Drive: 1 Motion Activated: 1 Focal Length mm: 5 ~ 51 Wide Dynamic Range: 1 Picture Elements HxV: 1080 x 1920 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/3 ~ 1/30,000 Compression Type: H.264, M-JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 19.2 W |
| Network Properties |
Image Frame Rate: 60 fps Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: IPv4/IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTCP, RTP, DHCP, FTP, UDP, uPnP, ARP, QoS, Zeroconf, Bonjour |
| Physical Specifications |
Weight g: 1,200 Dimensions mm: 98 x 93 x 288 |
| Environmental Specifications |
Protection: IP66, IK10 Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: Internet Explorer® 7.0 and above; Safari®, Firefox®, Google® Chrome® |
