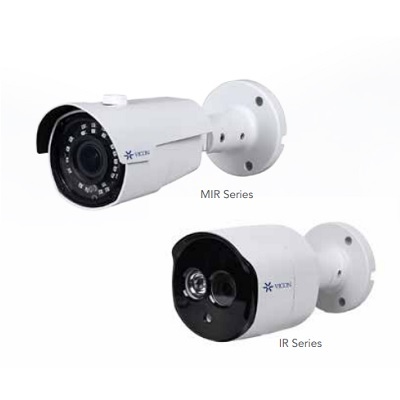

Vicon V814B-IR/V814B-312MIR network outdoor bullet camera
Technical Specification
Features:
- Make: Vicon
- Model code: V814B-IR/V814B-312MIR
- Series: V810B SERIES
- Chip Inch Size: 1/3 inch
- Colour Type: True Day / Night
Additional info:
2 MP and 4 MP models H.265/H.264 compression WDR IR LEDs (98 ft/30 m range) Fixed and motorised varifocal lens models 0.1 lux low light capabilities (color) Triple streaming Smart encoding
Read more| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | IP Cameras products |
| Model code | V814B-IR/V814B-312MIR |
| Series | V810B SERIES |
|
Chip Inch Size: 1/3 inch Colour Type: True Day / Night Resolution: 4MP resolution Digital (DSP): 1 Specialist Type: Network Sensitivity Lux: 0.0 ~ 0.01 Auto Iris: 1 Direct Drive: 1 Focal Length mm: 2.8 ~ 12 mm Wide Dynamic Range: 1 Picture Elements HxV: 2592 x 1520 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1 ~ 1/10,000 s Signal Mode: PAL, NTSC Compression Type: H.264, H.265, M-JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 4.2 W |
| Network Properties |
Image Frame Rate: 25 ~ 30 fps Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: IPv4/IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTCP, RTP, DHCP, FTP, UDP, uPnP, ARP, QoS, Zeroconf, Bonjour |
| Physical Specifications |
Weight g: 680 Dimensions mm: 84 x 239 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -10 ~ +50 C (14 ~ +122 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: Internet Explorer®, Chrome®, Safari®, Firefox® |
