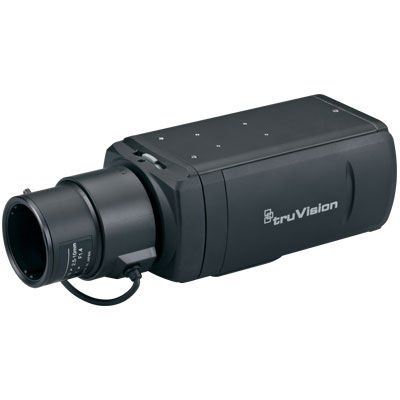

TruVision TVC-M1220-1-N 1.3 MP true day/night traditional box camera
Technical Specification
Features:
- Make: TruVision
- Model code: TVC-M1220-1-N
- Chip Inch Size: 1/3 inch
- Colour Type: True Day / Night
- Resolution: 1.3 MP resolution
Additional info:
TruVision TVC-M1220-1-N is a 1.3 MP true day/night traditional box camera equipped with advanced technology and signal processing capability and effectively capture video under challenging conditions.
Read more| Make | TruVision |
|---|---|
| Manufacturer | Interlogix |
| Category | IP Cameras products |
| Model code | TVC-M1220-1-N |
|
Chip Inch Size: 1/3 inch Colour Type: True Day / Night Resolution: 1.3 MP resolution Digital (DSP): Digital Specialist Type: Megapixel Sensitivity Lux: 0.45 Auto Iris: AI Lens Mount: C/CS mount Motion Activated: MotionActivated Picture Elements HxV: 1280 x 960 Electronic Shutter Range: 1/25 ~ 1/100,000s S/ N (Signal/ Noise) Ratio dB: >50 Signal Mode: NTSC Compression Type: H.264 PSIA/ONVIF |
|
| Electrical Specifications | Voltage: 12 V DC/PoE |
| Network Properties |
Image Frame Rate: 15 fps Network Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, PPPoE, SMTP, NTP |
| Physical Specifications |
Weight g: 500 Dimensions mm: 68 x 57 x 144 |
| Environmental Specifications | Operating Temperature oC: -10 ~ +60 C (14 ~ 140°F) |
| System Requirements |
Operating System: Windows ® XP, Vista or 7 Web Browser: Microsoft Internet Explorer 6.0 or later |
| Additional info | TruVision TVC-M1220-1-N is a 1.3 MP true day/night traditional box camera equipped with advanced technology and signal processing capability and effectively capture video under challenging conditions. |
