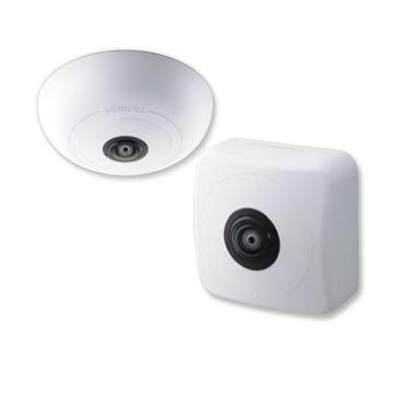

Tamron 130NT-P-WTM omni-directional camera
Technical Specification
Features:
- Make: Tamron
- Model code: 130NT-P-WTM
- Chip Inch Size ": 1/4 inch
- Resolution TVL: 400
- Sensitivity lux: 2
Additional info:
The Panorama Camera 180-View, a new type of omni-directional camera equipped with a fish-eye lens, is a single camera that provides a 180° horizontal angle of view, and is thus able to capture images that are almost completely free of blind spots. Outstanding lens performance has been achieved along with a class-leading wide aperture of f/1.7 Proprietary image processing technology corrects any residual distortion in captured images to generate more natural looking images. Tilting wall mount.
Read more| Make | Tamron |
|---|---|
| Manufacturer | Tamron Co., Ltd. |
| Category | IP Cameras products |
| Model code | 130NT-P-WTM |
|
Chip Inch Size ": 1/4 inch Resolution TVL: 400 Sensitivity lux: 2 Focal Length mm: 1.09 Mount Type: Wall Picture Elements HxV: 1280 x 960 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/30 ~ 1/10000 Signal Mode: NTSC Video Output: 1.0 Vp-p 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3 W |
| Physical Specifications |
Dimension mm: 72 x 72 Weight g: 100 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: IP66 |
| Additional info | The Panorama Camera 180-View, a new type of omni-directional camera equipped with a fish-eye lens, is a single camera that provides a 180° horizontal angle of view, and is thus able to capture images that are almost completely free of blind spots. Outstanding lens performance has been achieved along with a class-leading wide aperture of f/1.7 Proprietary image processing technology corrects any residual distortion in captured images to generate more natural looking images. Tilting wall mount. |
