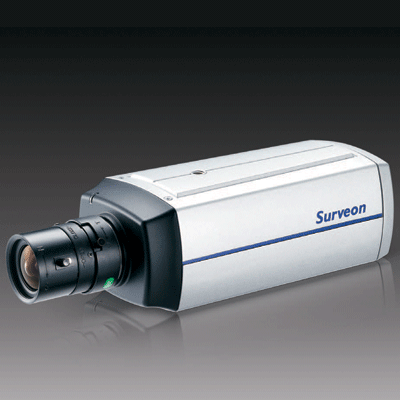

Surveon CAM2101 IP camera with IR-cut filter
Technical Specification
Features:
- Make: Surveon
- Model code: CAM2101
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Specialist Type: Network
| Make | Surveon |
|---|---|
| Manufacturer | Surveon Technology Inc |
| Category | IP Cameras products |
| Model code | CAM2101 |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Specialist Type: Network Sensitivity Lux: 0.2 @ F1.8 Lens Mount: C/CS mount Focal Length mm: 4.2 Picture Elements HxV: 720 x 480 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/4 ~ 1/10,000 Compression Type: H.264, MPEG-4, M-JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 5 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10/100 Base-T / RJ45 Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP, HTTP, UPnP, RTSP Software: Surveon VMS 2.4 |
| Physical Specifications |
Dimensions mm: 74.95 x 59.3 x 153.5 Weight g: 400 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 5 ~ 90 |
| System Requirements |
Operating System: Microsoft Windows XP/Vista/7 Web Browser: Microsoft IE 6.0 or above |
