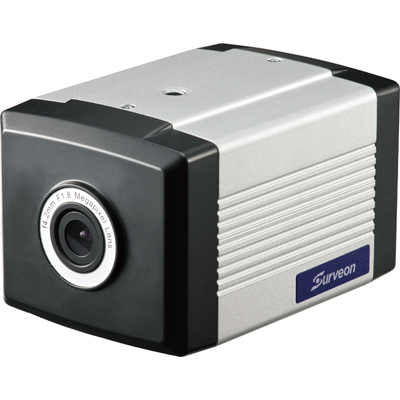

Surveon CAM1300 2 megapixel H.264 compact network camera
Technical Specification
- Make: Surveon
- Model code: CAM1300
- Chip Inch Size: 1/3 inch
- Resolution: 1920 x 1080 pixels resolution
- Specialist Type: Network
Surveon CAM1300 is a 2 megapixel compact network camera with wireless USB slots and tampering detection for small business and retail users. With 2 megapixel sensor and DWDR (Wide Dynamic Range) function, CAM1300 has a superior performance with enhanced image quality. It is an ideal solution for indoor applications, such as retail, restaurant, small business and clinic, the megapixel range will extend your capability to protect the building, the people, and your business.
Read more| Make | Surveon |
|---|---|
| Manufacturer | Surveon Technology Inc |
| Category | IP Cameras products |
| Model code | CAM1300 |
|
Chip Inch Size: 1/3 inch Resolution: 1920 x 1080 pixels resolution Specialist Type: Network Sensitivity Lux: 0.03 Motion Activated: MotionActivated Focal Length mm: 4.2 Wide Dynamic Range: WideDynamicRange Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/2 ~ 1/10,000 s S/ N (Signal/ Noise) Ratio dB: 48 Mini or Compact: MiniorCompact Compression Type: H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5 W |
| Network Properties |
Image Frame Rate: 15 fps Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP, ONVIF Software: Surveon VMS 2.4.7 |
| Physical Specifications |
Weight g: 270 Dimensions mm: 64 x 60 x 97 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 5 ~ 90 |
| System Requirements |
Operating System: Microsoft Windows XP/Vista/7 Web Browser: Microsoft IE 6.0 or above |
| Additional info |
Surveon CAM1300 is a 2 megapixel compact network camera with wireless USB slots and tampering detection for small business and retail users. With 2 megapixel sensor and DWDR (Wide Dynamic Range) function, CAM1300 has a superior performance with enhanced image quality. It is an ideal solution for indoor applications, such as retail, restaurant, small business and clinic, the megapixel range will extend your capability to protect the building, the people, and your business. |
