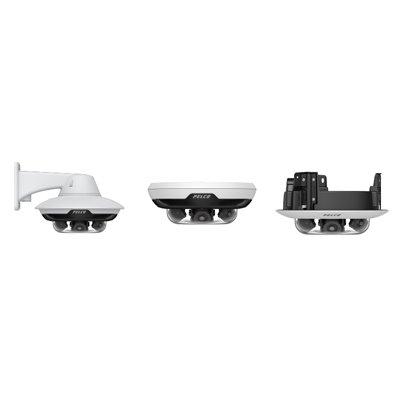

Pelco IMD9127 3x3 MP, WDR, SureVision, 270 degree max field of view, 2.8 mm, Camera Base Module
Technical Specification
Features:
- Make: Pelco
- Model code: IMD9127
- Chip Inch Size: 1/2.8 inch
- Resolution: 3x3 MP resolution
- Sensitivity Lux: 0.025
Additional info:
SureVision 2.0 delivers excellent low-light and True Wide Dynamic Range performance Adaptive IR technology extracts security detail in scenes with no light Captures details in very bright and dark areas to maximize image quality Pelco Smart Compression reduces bandwidth and storage needs Rated IK10 for vandal resistance and IP66/67 for water resistance, enabling indoor and outdoor use Is ONVIF Profile S, G and T compliant
Read more| Make | Pelco |
|---|---|
| Manufacturer | Pelco, Inc |
| Category | IP Cameras products |
| Model code | IMD9127 |
|
Chip Inch Size: 1/2.8 inch Resolution: 3x3 MP resolution Sensitivity Lux: 0.025 Motion Activated: 1 Focal Length mm: 2.8 mm Mount Type: Surface, Pendant, In-ceiling Wide Dynamic Range: 1 Back Light Compensation: 1 White Balance: 1 Electronic Shutter Range: 1/8 to 1/8000 sec Compression Type: H.264 Pelco Smart Compression, H.265 Pelco Smart Compression, Motion JPEG |
|
| Electrical Specifications | Voltage: 24 V DC, 24 V AC, PoE+ |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45, Gigabit Ethernet, 100BASE-TX, 1000BASE-TX Network Protocols: IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NPT, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS |
| Physical Specifications | Weight g: 1550 |
| Environmental Specifications |
Operating Temperature oC: In-ceiling mount: -10 ~ +50 C (14 ~ +122 F) / Surface, Pendant mount: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
|
