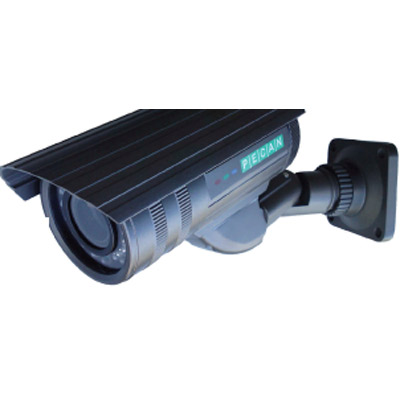

Pecan PCM690L IP66 bullet camera with IRLEDs
Technical Specification
Features:
- Make: Pecan
- Model code: PCM690L
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 600
Additional info:
The Pecan PCM690L bullet camera has a digital wide dynamic range and focus and zoom controls under rear panel.
Read more| Make | Pecan |
|---|---|
| Manufacturer | Stortech Electronics Limited |
| Category | IP Cameras products |
| Model code | PCM690L |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 600 Specialist Types: Infrared Auto Iris: AI Sensitivity lux: 0.02/0.002 Motion Activated: MotionActivated Focal Length mm: 4 ~ 9 Auto Gain Control: AutoGainControl S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal Signal Mode: PAL, NTSC Zoom: Zoom Video Output: 1.0vp-p composite video output, 75 ohms |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 200mA/450mA (IR on) |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +50 Protection: IP66 |
| Additional info | The Pecan PCM690L bullet camera has a digital wide dynamic range and focus and zoom controls under rear panel. |
