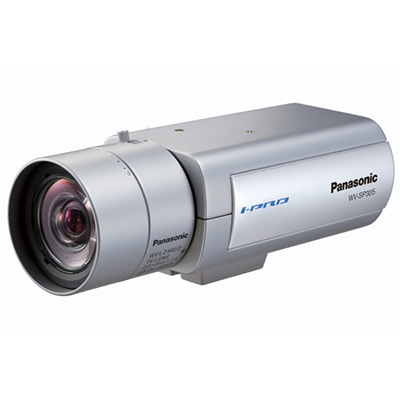

Panasonic WV-SP305E 1.3 megapixel network camera
Technical Specification
Features:
- Make: Panasonic
- Model code: WV-SP305E
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution: 1.3 MP resolution
Additional info:
WV-SP305E features VIQS (Variable Image Quality on Specified area) technology that allows the designated area to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate. It also has VMD (Video Motion Detector) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size.
Read more| Make | Panasonic |
|---|---|
| Manufacturer | Panasonic System Communications Company Europe |
| Category | IP Cameras products |
| Model code | WV-SP305E |
| Yes | |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.4 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T / 100Base-TX, RJ-45 connector Network Protocols: IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, ICMPv6 IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, AR |
| Physical Specifications |
Weight g: 390 Dimensions mm: 75 x 65 x 133 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: < 90 |
| System Requirements |
Operating System: Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 Web Browser: Windows® Internet Explorer® 10.0 (32 bit), Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit), Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3 |
| Additional info | WV-SP305E features VIQS (Variable Image Quality on Specified area) technology that allows the designated area to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate. It also has VMD (Video Motion Detector) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size. |
