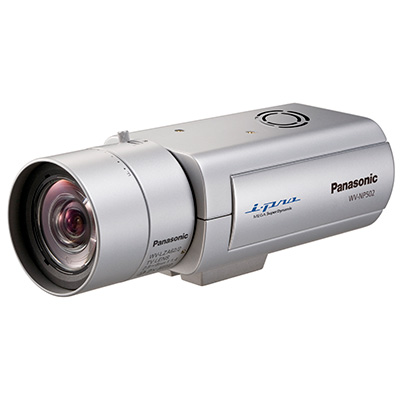

Panasonic WV-NP502E 3.0 megapixel true day/night HD network camera
Technical Specification
Features:
- Make: Panasonic
- Model code: WV-NP502E
- Chip Inch Size: 1/3 inch
- Colour Type: True Day / Night
- Resolution: 3.0 MP resolution
Additional info:
WV-NP502E has full duplex bi-directional audio that allows interactive communication between camera site and monitoring site. Its progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving. The cameras has VMD (Video Motion Detector) with 4 programmable detection areas,15 steps sensitivity level and 10 steps detection size
Read more| Make | Panasonic |
|---|---|
| Manufacturer | Panasonic System Communications Company Europe |
| Category | IP Cameras products |
| Model code | WV-NP502E |
| Yes | |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 12 V DC |
| Network Properties |
Image Frame Rate: 30 fps Inclusion DVR/ Web Server: DVR Interface: 10Base-T / 100Base-TX, RJ-45 connector Network Protocols: IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP |
| Physical Specifications |
Dimensions mm: 75 x 65 x 133 Weight g: 430 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: < 90 |
| System Requirements |
Operating System: Microsoft® Windows® 8 ,Microsoft® Windows® 7 , Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 Web Browser: Windows® Internet Explorer® 10.0 (32 bit), Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit), Windows® Internet Explorer® 7.0 (32 bit) Microsoft® Internet Explorer® 6.0 SP3 |
| Additional info | WV-NP502E has full duplex bi-directional audio that allows interactive communication between camera site and monitoring site. Its progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving. The cameras has VMD (Video Motion Detector) with 4 programmable detection areas,15 steps sensitivity level and 10 steps detection size |
