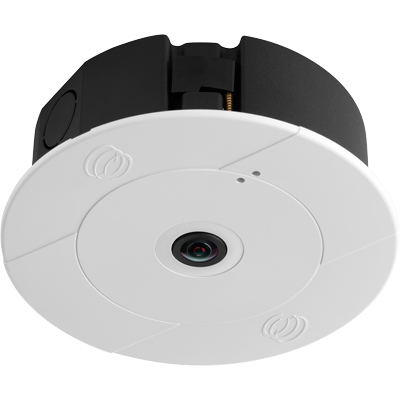

Oncam Evolution 12 Recessed Camera
Product Profile
Blending seamlessly into any environment, the Evolution 12 Recessed camera is designed to offer the same 360-degree coverage, ease of installation and visual impact with a nearly invisible form factor. The camera offers simultaneous multiple video streams with resolutions from 544x512 to 3200x3000 and offers up to 4x1MP VCams via on board dewarping.
The Evolution 12 Recessed can be accessed entirely below the ceiling line, making it extremely easy to install and maintain. The visible part of the camera has a discreet profile, and can be customised to match any colour, making it possible to provide quality, unobstructed images without overshadowing elements of interior design in retail stores, hotels, casinos, banks and other applications.
Technical Specification
| Make | Oncam |
|---|---|
| Manufacturer | Oncam |
| Category | IP Cameras products |
| Model code | EVO-12-NRD |
| Series | Evolution Series |
|
Colour Type: Colour / Monochrome Resolution: 12 MP resolution Digital (DSP): Digital Specialist Type: Network Sensitivity Lux: 0.1 Auto Iris: AI Direct Drive: DD Motion Activated: MotionActivated Mount Type: Indoor Recessed Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 3552 x 3000 White Balance: WhiteBalance Zoom: Zoom Y/ C (Video Output): BNC Compression Type: H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 9.4 W (PoE) / 7.7 W (12 VDC) |
| Network Properties |
Image Frame Rate: 12 fps Interface: RJ45 for 100Base-TX Network Protocols: TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP and RSTP |
| Physical Specifications |
Weight g: 800 Dimensions mm: 175 x 67 |
| Environmental Specifications |
Operating Temperature oC: 0 ~ 40 C (32 ~ 104 F) Operating Humidity %: 0 ~ 98 |
| System Requirements | Web Browser: Internet Explorer 9, Edge 25, Firefox 23 and Chrome 29 or above |
| Additional info |
|
