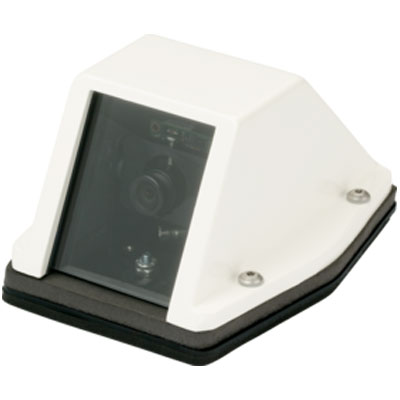

MobileView MSS-8001-xx-00 550TVL colour CCTV camera
Technical Specification
Features:
- Make: MobileView
- Model code: MSS-8001-xx-00
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour
- Resolution TVL: 550
Additional info:
MobileView MSS-8001-xx-00 is a colour CCTV camera featuring tamper-resistant construction, low profile and flush mounting. The cameras housings are ideally suited for transit vehicle installations.
Read more| Make | MobileView |
|---|---|
| Manufacturer | Interlogix |
| Category | IP Cameras products |
| Model code | MSS-8001-xx-00 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour Resolution TVL: 550 Digital (DSP): Digital Sensitivity lux: 0.1 Focal Length mm: 12 Mount Type: Flush/Ceiling Picture Elements HxV: 811 x 508 Electronic Shutter range: 1/60 (1/50) ~ 1/100,000s S/ N (Signal/ Noise) Ratio dB: >50 Signal Mode: PAL/NTSC Video Output: 1.0Vp-p / 75 ohm composite |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 0.75 W |
| Physical Specifications | Dimension mm: 102 x 127 x 64 |
| Environmental Specifications | Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) |
| Additional info | MobileView MSS-8001-xx-00 is a colour CCTV camera featuring tamper-resistant construction, low profile and flush mounting. The cameras housings are ideally suited for transit vehicle installations. |
