Mitsubishi Electric's DVR range includes the DX-TL4E, DX-TL4509E, DX-TL4516E and the DX-TL5000E
Product Profile

Economically priced, the DX-TL4E is the latest DVR offering from Mitsubishi designed specifically to meet the requirements of small retail outlets, commercial businesses, petrol stations and convenience stores, as well as domestic markets.
A perfect solution as an upgrade from an analogue security system to digital, the DX-TL4E is quick and easy to set up and provides high-quality recording and playback functionality. In addition, this DVR features Mitsubishi's own Dynamic Digital Compression™, an advanced video compression that enables long-term recording with its 100 images per second recording speed. When set in standard mode, the DX-TL4E provides more than 50 days of continuous recording.
Benefiting from a compact, slim and sleek design, the DX-TL4E is lightweight at 3.2kg - making it ideal for locations where space may be an issue.
Mitsubishi's DVRs benefit from a number of advanced features including a dual multiplexer output that allows both live and recorded footage to be recorded simultaneously.
Mitsubishi's 9 and 16 channel DVRs utilise the latest JPEG2000 compression technology, ensuring high-quality, fine detailed pictures are captured. As standard, the DX-TL4509E and DX-TL4516E come with 400Gb HDD with the option to add an additional internal drive as well as another 7Tb externally, using the ZD5UE hard disk extender box.

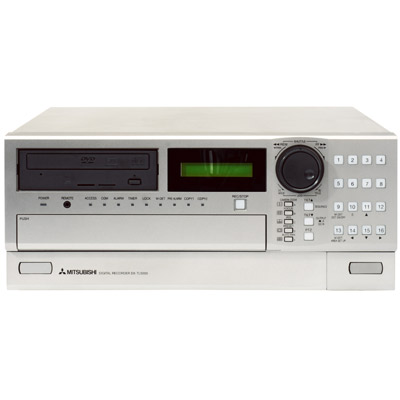

The DX- TL5000E is Mitsubishi's most advanced recorder and comes with 500Gb HDD and a recording rate of 200pps, with the option to upgrade to 35Tb.
All of Mitsubishi's DX-TLs are now Kalagate approved and are suitable for a range of applications including retail, banking, corporate and the public sector; and all come with a 24-month warranty and support from Mitsubishi's in-house and service team.
Visit us at IFSEC, Birmingham NEC 12-15th May 2008, Stand 13021
Technical Specification
Make | Mitsubishi |
---|---|
Manufacturer | Mitsubishi Electric |
Category | IP Cameras products |
Model code | DX-TL5000E |
Channels: 16 channels Recording Mode: Real Time / Timelapse / Event recording Monitor Outputs: 2 Inbuilt Multiplexer: InbuiltMultiplexer Multiplexer Type: Triplex Storage Capacity GB: 250 GB storage Image per second (IPS): <200 fps storage rate Compression Type: JPEG2000 Resolution: 720 x 576 resolution Signal Mode: PAL Recording System: HDD Mount type: 16 in, 2 out |
|
Physical Specifications |
Dimensions mm: 425 x 390 x 175 Weight kg: 13,400 |
Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 240 V |
Environmental Specifications |
Operating Temp oC: 5 ~ 40 Operating Humidity %: 30 ~ 80 |
Additional info | Triplex recording, allowing for playback of data and display of live images whilst recording current data. Two multiplexer outputs make it possible to display both different live cameras with multi-screen formats. If connecting two or more DX-TL5000Es, one unit can be set-up as a master connected to the monitor outputs, with other units just connected to the master. |
