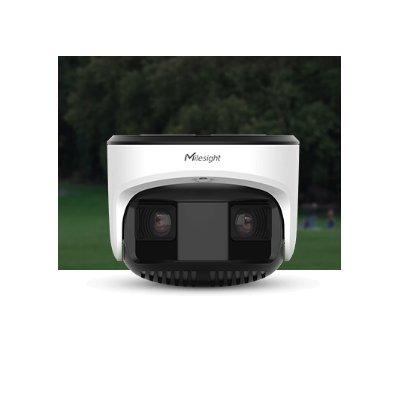

Milesight MS-C8477-PC AI Dual-sensor 180° Panoramic Network Camera
Technical Specification
Features:
- Make: Milesight
- Model code: MS-C8477-PC
- Chip Inch Size: 1/1.8 inch
- Colour Type: Colour / Monochrome
- Resolution: 5084x1520 resolution
Additional info:
Seamless Stitched 180° Panoramic View 8MP High Definition without Distortion AI ISP & 1/1.8″ Sensor for Super Night Vision Smart IR II with 30m IR Distance 9 AI VCA & Object Counting & Heat Map 1TB SD Storage & H.265+ Smart Stream
Read more| Make | Milesight |
|---|---|
| Manufacturer | Milesight |
| Category | IP Cameras products |
| Model code | MS-C8477-PC |
|
Chip Inch Size: 1/1.8 inch Colour Type: Colour / Monochrome Resolution: 5084x1520 resolution Sensitivity Lux: Colour: [email protected] B/W: 0Lux with IR on Focal Length mm: 4mm Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 Electronic Shutter Range: 1/100000s~1s S/ N (Signal/ Noise) Ratio dB: >55dB Compression Type: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 6W |
| Network Properties |
Interface: RJ45 10M/100M Ethernet Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Physical Specifications |
Dimensions mm: Φ160 x 127.5 Weight g: 1500 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
|
