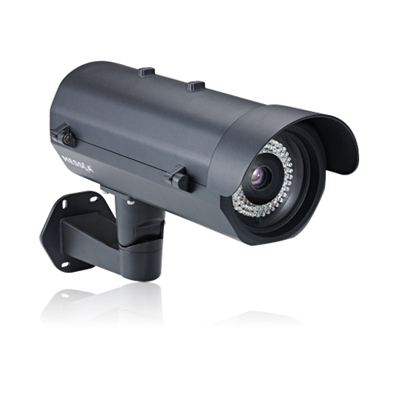

Messoa SCR510HB-HN2 1/2 inch plate capture camera
Technical Specification
Features:
- Make: Messoa
- Model code: SCR510HB-HN2
- Chip Inch Size ": 1/2 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 600
Additional info:
The Messoa SCR510HB-HN2 is a 1/2 inch plate capture camera for high speed vehicle.
Read more| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | IP Cameras products |
| Model code | SCR510HB-HN2 |
|
Chip Inch Size ": 1/2 inch Colour Type: Colour / Monochrome Resolution TVL: 600 Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 High Speed: HighSpeed Focal Length mm: 75 Mount Type: Wall/Corner/Pole Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 768 x 494 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Gamma Correction: 0.45/1 Electronic Shutter range: 1/60 ~ 1/100,000sec S/ N (Signal/ Noise) Ratio dB: >50 Synchronisation: Internal, Line-lock Signal Mode: NTSC Video Output: 1Vpp composite output, 75 ohm |
|
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 45 W |
| Physical Specifications |
Dimension mm: 422 x 174 x 145 Weight g: 6,000 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) Protection: IP66 Operating Humidity %: 30 ~ 90 |
| Additional info | The Messoa SCR510HB-HN2 is a 1/2 inch plate capture camera for high speed vehicle. |
