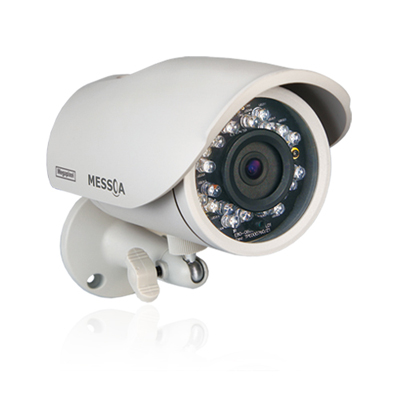

Messoa NCR870H-HN5-MES 1/3 inch HD IR bullet network camera

Technical Specification

Features:
  • Make: Messoa
  • Model code: NCR870H-HN5-MES
  • Chip Inch Size: 1/3 inch
  • Colour Type: Colour / Monochrome
  • Resolution: 2 MP resolution
Read more
Additional info:

The NCR870H-HN5-MES is a ready to go infrared (IR) camera that is able to see even in total darkness. The 24 high quality IR illuminators built around the lens bring about crystal clear pictures even in the darkest night as far as 25 meters (82 ft). Plus, with IP67-rated all- weather waterproof, aluminum casing, the NCR870H-HN5-MES ensures reliable operation in any environment. This camera is ideal for outdoor applications such as conveniance stores, streets and parking lots.

Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Category IP Cameras products
Model code NCR870H-HN5-MES
Yes
Electrical Specifications Voltage: 24 V DC
Power Consumption: <20 W
Network Properties Image Frame Rate: 30 fps
Interface: 10Base-T/100Base-TX, RJ-45
Network Protocols: IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, ICMP, uPNP
Physical Specifications Weight g: 550
Dimensions mm: 70 x 162 x 82
Environmental Specifications Protection: IP67
Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F)
Operating Humidity %: 10 ~ 90
System Requirements Web Browser: IE browser 6.0 or above
Additional info The NCR870H-HN5-MES is a ready to go infrared (IR) camera that is able to see even in total darkness. The 24 high quality IR illuminators built around the lens bring about crystal clear pictures even in the darkest night as far as 25 meters (82 ft). Plus, with IP67-rated all- weather waterproof, aluminum casing, the NCR870H-HN5-MES ensures reliable operation in any environment. This camera is ideal for outdoor applications such as conveniance stores, streets and parking lots.
