Messoa NCR770-HP1-EU-MES 1MP IR bullet IP camera
Technical Specification
Features:
- Make: Messoa
- Model code: NCR770-HP1-EU-MES
- Chip Inch Size: 1/4 inch
- Colour Type: Colour / Monochrome
- Resolution: 1 MP resolution
Additional info:

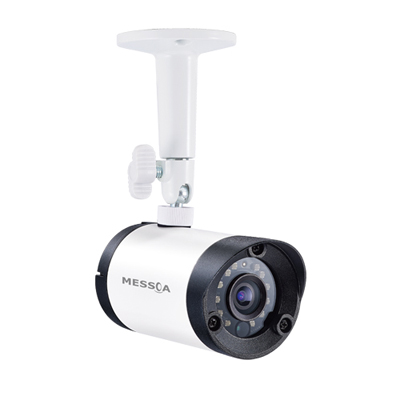

Messoa NCR770-HP1-EU-MES is a mini-sized 1MP IR bullet IP camera designed for maximum flexibility and plug-and-play integration with MESSOA Lite Series NVR. It is a perfect solution for applications demanding discreet and non-intrusive installations, such as boutiques and retail shops. The built-in IR LED provides night vision up to 10 meters. The IP67-rated water-resistant metallic housing also adds assurance to the camera’s durability and reliable operation in a wide range of indoor/outdoor environments.
Read more| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | IP Cameras products |
| Model code | NCR770-HP1-EU-MES |
|
Chip Inch Size: 1/4 inch Colour Type: Colour / Monochrome Resolution: 1 MP resolution Digital (DSP): Digital Specialist Type: Infrared Sensitivity Lux: 0 Auto Iris: AI Direct Drive: DD Motion Activated: MotionActivated Focal Length mm: 4.2 Mount Type: Wall Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 1280 x 800 Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/960s ~ 1/30s Signal Mode: PAL Mini or Compact: MiniorCompact Zoom: Zoom Compression Type: H.264/MPEG4/Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 9 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T/100Base-TX Ethernet connection for LAN/ WAN, RJ-45 Network Protocols: IPv4, HTTP, HTTPS, SMTP, FTP, DHCP, NTP, TCP/IP, UPnP, RTSP/RTP/RTCP, DNS, DDNS, PPPoE, IGMP, QoS, Bonjour, Samba, Multicast |
| Physical Specifications |
Weight g: 548 Dimensions mm: 60 x 114 |
| Environmental Specifications |
Protection: IP67 Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 20 ~ 90 |
| System Requirements | Web Browser: IE Browser 8.0 or 9.0 |
| Additional info | Messoa NCR770-HP1-EU-MES is a mini-sized 1MP IR bullet IP camera designed for maximum flexibility and plug-and-play integration with MESSOA Lite Series NVR. It is a perfect solution for applications demanding discreet and non-intrusive installations, such as boutiques and retail shops. The built-in IR LED provides night vision up to 10 meters. The IP67-rated water-resistant metallic housing also adds assurance to the camera’s durability and reliable operation in a wide range of indoor/outdoor environments. |
