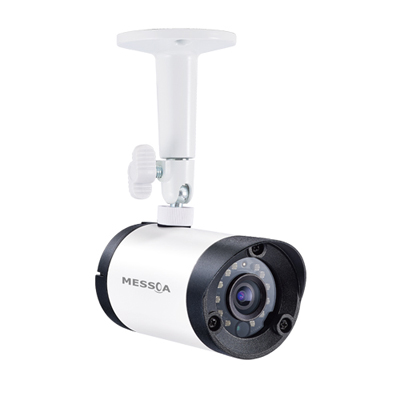

Messoa NCR770-HP1-CN-MES 1/4 inch 1MP IR bullet network camera

Technical Specification

Features:
  • Make: Messoa
  • Model code: NCR770-HP1-CN-MES
  • Chip Inch Size: 1/4 inch
  • Colour Type: Colour / Monochrome
  • Resolution: 1 MP resolution
Read more
Additional info:

Messoa NCR770-HP1-CN-MES is a mini-sized, high-performance bullet-type megapixel IR camera designed for maximum flexibility and plug-and-play integration with MESSOA Lite Series NVR. Measuring just 10cm in length, the compact yet versatile form factor makes the camera a perfect solution for applications demanding discreet and non-intrusive installations, such as boutiques and retail shops. The built-in IR LED provides night vision up to 10 meters. The IP67-rated water-resistant metallic housing also adds assurance to the camera’s durability and reliable operation in a wide range of indoor/outdoor environments.

Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Category IP Cameras products
Model code NCR770-HP1-CN-MES
Chip Inch Size: 1/4 inch
Colour Type: Colour / Monochrome
Resolution: 1 MP resolution
Digital (DSP): Digital
Specialist Type: Infrared
Sensitivity Lux: 0
Focal Length mm: 4.2
Mount Type: Wall
Wide Dynamic Range: WideDynamicRange
Picture Elements HxV: 1280 x 800
Back Light Compensation: BackLightCompensation
Auto Gain Control: AutoGainControl
White Balance: WhiteBalance
Electronic Shutter Range: 1/960 ~ 1/30 sec
Signal Mode: PAL
Mini or Compact: MiniorCompact
Compression Type: H.264/MPEG4/Motion JPEG
Electrical Specifications Voltage: 12 V DC
Power Consumption: 9 W
Network Properties Image Frame Rate: 30 fps
Interface: 10Base-T/100Base-TX, RJ-45
Network Protocols: IPv4, HTTP, HTTPS, SMTP, FTP, DHCP, NTP, TCP/IP, UPnP, RTSP/RTP/RTCP, DNS, DDNS, PPPoE, IGMP, QoS, Bonjour, Samba, Multicast
Physical Specifications Dimensions mm: 60 x 114
Weight g: 548
Environmental Specifications Protection: IP67
Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F)
Operating Humidity %: 20 ~ 90
System Requirements Web Browser: IE Browser 8.0 or 9.0
Additional info Messoa NCR770-HP1-CN-MES is a mini-sized, high-performance bullet-type megapixel IR camera designed for maximum flexibility and plug-and-play integration with MESSOA Lite Series NVR. Measuring just 10cm in length, the compact yet versatile form factor makes the camera a perfect solution for applications demanding discreet and non-intrusive installations, such as boutiques and retail shops. The built-in IR LED provides night vision up to 10 meters. The IP67-rated water-resistant metallic housing also adds assurance to the camera’s durability and reliable operation in a wide range of indoor/outdoor environments.
Download PDF version
