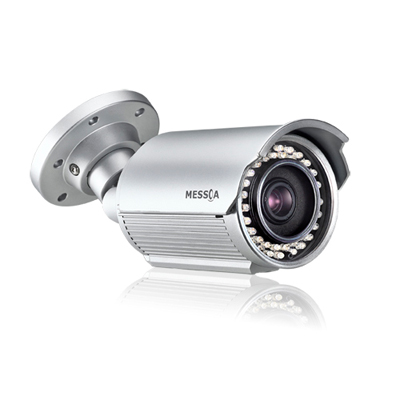

Messoa NCR368 1/3 inch outdoor IR bullet camera
Technical Specification
Features:
- Make: Messoa
- Model code: NCR368
- Series: Maven Series IP Cameras
- Chip Inch Size: 1/3 inch
- Colour Type: True Day / Night
Additional info:
The NCR368 is a professional 5-megapixel bullet camera designed for detail-demanding outdoor surveillance, delivering the ultimate image sharpness and view coverage like no others. A true day/night camera, the NCR368 features enhanced sensitivity backed by proprietary Lumii™ Low Light Technology, IR night vision and 3DNR to provide superior image clarity in low light conditions. The built-in heater and the weatherproof enclosure ensure the camera is suited for harsh environments. The featured motorised zoom with auto focus, as well as the 3-axis cable management bracket and the external lens adjustment, significantly facilitate installation of this versatile camera.
Read more| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | IP Cameras products |
| Model code | NCR368 |
| Series | Maven Series IP Cameras |
|
Chip Inch Size: 1/3 inch Colour Type: True Day / Night Resolution: 5 MP resolution Digital (DSP): Digital Specialist Type: Infrared Sensitivity Lux: 0 Auto Iris: AI Focal Length mm: 3 ~ 9 Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 2592 x 1944 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/10,000 ~ 1/7.5 sec Signal Mode: NTSC, PAL Compression Type: H.264/MJPEG |
|
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 11.5 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T/100Base-TX, RJ-45 Network Protocols: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP, UPnP, IEEE802.1X |
| Physical Specifications |
Weight g: 1,600 Dimensions mm: 115 x 264 x 110 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: Internet Explorer, Chrome, Firefox, Safari |
| Additional info | The NCR368 is a professional 5-megapixel bullet camera designed for detail-demanding outdoor surveillance, delivering the ultimate image sharpness and view coverage like no others. A true day/night camera, the NCR368 features enhanced sensitivity backed by proprietary Lumii™ Low Light Technology, IR night vision and 3DNR to provide superior image clarity in low light conditions. The built-in heater and the weatherproof enclosure ensure the camera is suited for harsh environments. The featured motorised zoom with auto focus, as well as the 3-axis cable management bracket and the external lens adjustment, significantly facilitate installation of this versatile camera. |
