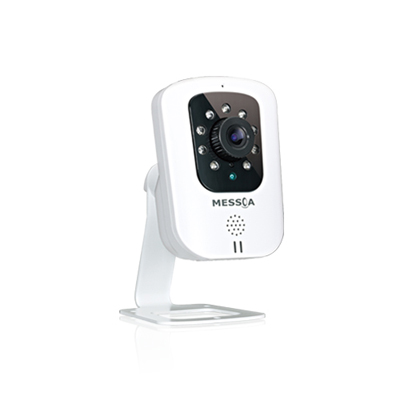

Messoa NCC800WL-HN1-US-MES colour / monochrome HD network cube camera
Technical Specification
Features:
- Make: Messoa
- Model code: NCC800WL-HN1-US-MES
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution: 2 MP resolution
Additional info:
Featuring 2-megapixel Full HD resolution at full frame rates, the NCC800WL-HN1-US-MES is designed for professional indoor surveillance, targeting retail shops, small businesses or offices where image quality is emphasised. The built-in infrared LED gives true, maximized night visibility in complete darkness up to 10 meters. Further enhanced by the proprietary Lumii™ imaging technology, the NCC800WL-HN1-US-MES provides the unparalleled low light performance like no others. The camera also offers flexible installation, 2-way audio communication, and wireless connectivity to make it a comprehensive and professional business security solution.
Read more| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | IP Cameras products |
| Model code | NCC800WL-HN1-US-MES |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 2 MP resolution Digital (DSP): Digital Specialist Type: Network Sensitivity Lux: 0 Focal Length mm: 3.1 Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 1920 x 1080 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/10000 ~ 1/3.75 sec Signal Mode: NTSC Y/ C (Video Output): BNC Compression Type: H.264/MPEG4/Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 7.5 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T/100Base-TX, RJ-45 Network Protocols: IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, SSH, FTP, RTP,RTSP, ICMP, UPnP |
| Physical Specifications |
Dimensions mm: 76 x 103 x 42 Weight g: 118 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 10 ~ 90 |
| System Requirements | Web Browser: IE browser 6.0 or above |
| Additional info | Featuring 2-megapixel Full HD resolution at full frame rates, the NCC800WL-HN1-US-MES is designed for professional indoor surveillance, targeting retail shops, small businesses or offices where image quality is emphasised. The built-in infrared LED gives true, maximized night visibility in complete darkness up to 10 meters. Further enhanced by the proprietary Lumii™ imaging technology, the NCC800WL-HN1-US-MES provides the unparalleled low light performance like no others. The camera also offers flexible installation, 2-way audio communication, and wireless connectivity to make it a comprehensive and professional business security solution. |
