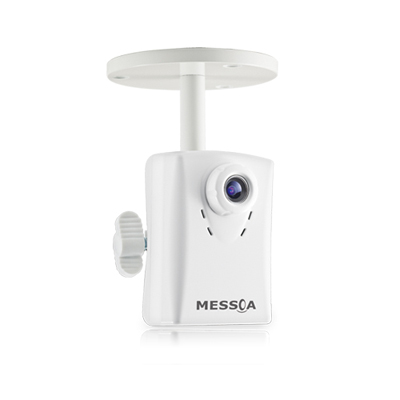

Messoa NCC700-HN1-US-MES 1/4 inch day/night cube IP camera
Technical Specification
Features:
- Make: Messoa
- Model code: NCC700-HN1-US-MES
- Chip Inch Size: 1/4 inch
- Colour Type: Colour / Monochrome
- Resolution: 1.3 MP resolution
Additional info:
The NCC700-HN1-US-MES cube network camera is a smart, compact solution, fit for homes, small businesses, offices or restaurants. The camera brings superior image quality, featuring 1.3-megapixel resolution at full frame rate provided in multiple streaming in H.264 and M-JPEG compression. Function-wise, the camera offers comprehensive monitoring capabilities with digital day/night, intelligent video and event management, and local storage. It is also very easy to install and duly supports plug-and-play when connected and used with the MESSOA Lite NVR Solution, perfect for users who are new to the technology but want to take a leap forward from analog.
Read more| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | IP Cameras products |
| Model code | NCC700-HN1-US-MES |
|
Chip Inch Size: 1/4 inch Colour Type: Colour / Monochrome Resolution: 1.3 MP resolution Digital (DSP): Digital Specialist Type: Network Sensitivity Lux: 1.6 Focal Length mm: 4.3 Mount Type: Wall/Ceiling Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 1280 x 1024 White Balance: WhiteBalance Electronic Shutter Range: 1/120 ~ 1/5 sec Signal Mode: NTSC Mini or Compact: MiniorCompact Compression Type: H.264 /Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T/100Base-TX, RJ-45 Network Protocols: IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, RTCP, ICMP, UPnP, IPv6, HTTPS, DDNS, DIPS, ARP, Bonjour, IGMP, PPPoE, 3GPP, SAMBA |
| Physical Specifications |
Weight g: 70 Dimensions mm: 53 x 35 x 75 |
| Environmental Specifications |
Operating Temperature oC: 0 ~ 40 C (32 ~ 104 F) Operating Humidity %: 20 ~ 80 |
| System Requirements | Web Browser: IE Browser 6.0 or above |
| Additional info | The NCC700-HN1-US-MES cube network camera is a smart, compact solution, fit for homes, small businesses, offices or restaurants. The camera brings superior image quality, featuring 1.3-megapixel resolution at full frame rate provided in multiple streaming in H.264 and M-JPEG compression. Function-wise, the camera offers comprehensive monitoring capabilities with digital day/night, intelligent video and event management, and local storage. It is also very easy to install and duly supports plug-and-play when connected and used with the MESSOA Lite NVR Solution, perfect for users who are new to the technology but want to take a leap forward from analog. |
