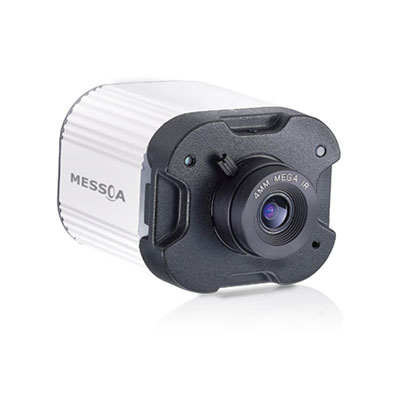

Messoa NCB750-HP5-EU-MES 1MP colour monochrome fixed network camera
Technical Specification
Features:
- Make: Messoa
- Model code: NCB750-HP5-EU-MES
- Chip Inch Size: 1/4 inch
- Colour Type: Colour / Monochrome
- Resolution: 1 MP resolution
Additional info:
Messoa NCB750-HP5-EU-MES is a 1MP colour monochrome fixed network camera designed for complete functionality and plug-and-play integration with MESSOA Lite Series NVR. It features mechanical ICR day/night and can be applied to environments with diverse lighting conditions. The full-functioned design with microSD card slot, two-way audio, and focus assistance makes it a versatile yet easy-to-install solution for various indoor projects, such as residence, retail stores, boutiques, hotels and offices
Read more| Make | Messoa |
|---|---|
| Manufacturer | MESSOA Technologies Inc. |
| Category | IP Cameras products |
| Model code | NCB750-HP5-EU-MES |
|
Chip Inch Size: 1/4 inch Colour Type: Colour / Monochrome Resolution: 1 MP resolution Digital (DSP): Digital Specialist Type: Megapixel Sensitivity Lux: 0.4 Auto Iris: AI Lens Mount: CS mount Motion Activated: MotionActivated Focal Length mm: 4 Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 1280 x 800 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter Range: 1/1000 ~ 1/25s Signal Mode: PAL Zoom: Zoom Y/ C (Video Output): BNC X1, 1.0Vp-p, 75 Ohm Compression Type: H.264 / MPEG4 / Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC/PoE Power Consumption: 8 W |
| Network Properties |
Image Frame Rate: 25 fps Interface: 10BASE-T/100BASE-TX (RJ-45) Network Protocols: IPv4, HTTP, HTTPS, SMTP, FTP, DHCP, NTP, TCP/IP, UPnP, RTSP/RTP/RTCP, DNS, DDNS |
| Physical Specifications |
Dimensions mm: 66 x 66 x 55 Weight g: 270 |
| Environmental Specifications |
Operating Temperature oC: 0 ~ 50 C (32 ~ 122 F) Operating Humidity %: 20 ~ 90 |
| System Requirements | Web Browser: IE Browser 8.0 or 9.0 |
| Additional info | Messoa NCB750-HP5-EU-MES is a 1MP colour monochrome fixed network camera designed for complete functionality and plug-and-play integration with MESSOA Lite Series NVR. It features mechanical ICR day/night and can be applied to environments with diverse lighting conditions. The full-functioned design with microSD card slot, two-way audio, and focus assistance makes it a versatile yet easy-to-install solution for various indoor projects, such as residence, retail stores, boutiques, hotels and offices |
