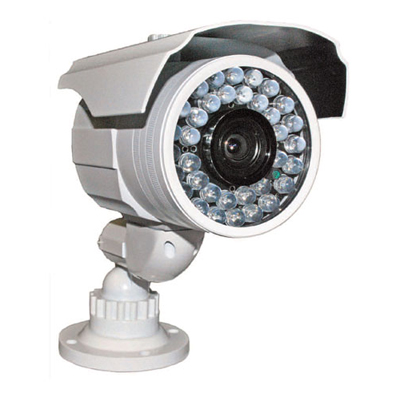

Linear MLTL2DN49IR mini line track day/night IR camera
Technical Specification
Features:
- Make: Linear
- Model code: MLTL2DN49IR
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 540 TVL
Additional info:
Linear MLTL2DN49IR is a mini line track day/night IR camera.
Read more| Make | Linear |
|---|---|
| Manufacturer | Linear LLC |
| Category | IP Cameras products |
| Model code | MLTL2DN49IR |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 540 TVL Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Focal Length mm: 4 ~ 9 mm Picture Elements HxV: 510 x 492 White Balance: WhiteBalance Gamma Correction: 0.45 Electronic Shutter range: 1/60 ~ 1/100,000Sec S/ N (Signal/ Noise) Ratio dB: > 48 Synchronisation: Internal Signal Mode: NTSC Video Output: 1.0Vp-p, 75 Ohm |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 10 W |
| Physical Specifications |
Dimension mm: 159 x 101 x 95 Weight g: 1,040 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: IP66 |
| Additional info | Linear MLTL2DN49IR is a mini line track day/night IR camera. |
