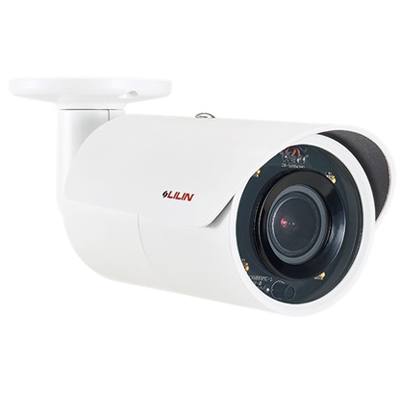

LILIN ZMR8422X Day & Night 2MP HD AF Bullet IR IP Camera
Technical Specification
Features:
- Make: LILIN
- Model code: ZMR8422X
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution: 2MP resolution
Additional info:
Full HD 2.0 megapixel CMOS image sensor 1080P True H.264 AVC High Profile video compression H.264 and Motion JPEG multi-profile video streaming Auto focus with zoom / focus motorized lens Smart H.264 supported 3D noise reduction (MCTF) 2D WDR function HDR function up to 100dB Digital PTZ supported IVS supported Cable managed housing and bracket Tampering / Audio / Motion detection alarm function High efficiency IR LED, radiant distance up to 30m Day & Night (IR cut removable) ONVIF Profile S supported
Read more| Make | LILIN |
|---|---|
| Manufacturer | LILIN |
| Category | IP Cameras products |
| Model code | ZMR8422X |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 2MP resolution Digital (DSP): 1 Specialist Type: Infrared Sensitivity Lux: 0 ~ 0.025 Auto Iris: 1 Focal Length mm: 2.8 ~ 8 Wide Dynamic Range: 1 Picture Elements HxV: 1945 x 1097 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/30(1/25)s – 1/30000s S/ N (Signal/ Noise) Ratio dB: > 50 Zoom: 1 Compression Type: H.264 Main and High Profile, Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 7.5W ~ 8.6W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T / 100Base-TX, RJ-45 Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SDDP, Bonjour |
| Physical Specifications |
Weight g: 515 Dimensions mm: 68 x 69 x 214 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) |
| System Requirements |
Operating System: Embedded Linux 3.10 Web Browser: Microsoft® Internet Explorer® 9.0 and later |
| Additional info |
|
