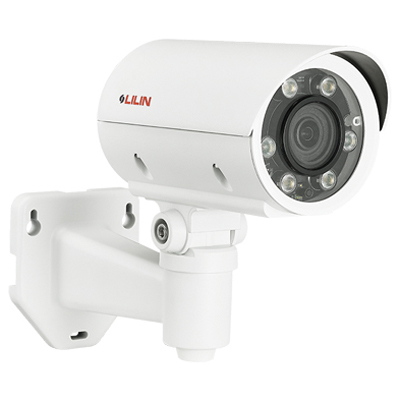

LILIN ZMR7742X Day & Night 4MP HD AF Bullet IR IP Camera
Technical Specification
Features:
- Make: LILIN
- Model code: ZMR7742X
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution: 4MP resolution
Additional info:
Full HD 4.0 megapixel CMOS image sensor 4MP True H.264 AVC High Profile video compression H.264 and Motion JPEG multi-profile video streaming Auto focus with zoom / focus motorized lens Smart H.264 supported 3D noise reduction (MCTF) 2D WDR function HDR function up to 100dB Digital PTZ supported IVS supported Tampering / Motion detection alarm function High efficiency IR LED, radiant distance up to 40m Day & Night (IR cut removable) ONVIF Profile S supported 2-way audio supported Digital I/O : 1 in, 1 out
Read more| Make | LILIN |
|---|---|
| Manufacturer | LILIN |
| Category | IP Cameras products |
| Model code | ZMR7742X |
| Yes | |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 8.4W ~ 10.6W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Base-T / 100Base-TX, RJ-45 Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SDDP, Bonjour |
| Physical Specifications |
Weight g: 1450 Dimensions mm: 99 x 90 x 195 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) Protection: IP66 |
| System Requirements |
Operating System: Embedded Linux 3.10 Web Browser: Microsoft® Internet Explorer® 9.0 and later |
| Additional info |
|
