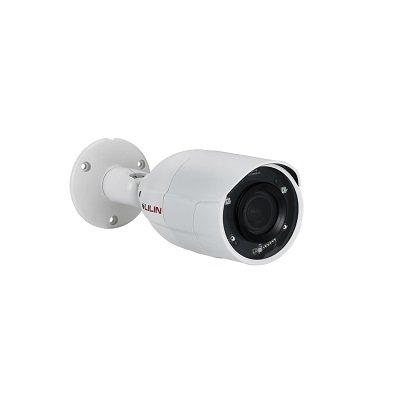

Lilin P5R8852E2 5MP Day & Night Fixed IR IP Bullet Camera

Technical Specification

Features:
  • Make: LILIN
  • Model code: P5R8852E2
  • Chip Inch Size: 1/2.7 inch
  • Colour Type: Colour / Monochrome
  • Resolution: 5MP resolution
Read more
Additional info:

5 megapixel CMOS image sensor 5MP H.265/HEVC and H.264/AVC high-performance video compression Simultaneous streaming of H.265 and H.264 encoded streams 3D noise reduction (MCTF) 2D WDR function DWDR function up to 70dB High efficiency IR LED, radiant distance up to 30m Day & Night (IR cut removable) Digital I/O : 1 in, 1 out ONVIF Profile S supported IP67 rain and dust resistan Vandal resistant approve

Read more
Make LILIN
Manufacturer LILIN
Category IP Cameras products
Model code P5R8852E2
Yes
Electrical Specifications Voltage: 12 V DC, POE
Power Consumption: 9.1 W
Network Properties Image Frame Rate: 20 fps
Interface: 10/100 Mbps Base-T (Tx), RJ-45
Network Protocols: IPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SSL/TLS
Physical Specifications Dimensions mm: 74 x 69 x 189
Weight g: 555
Environmental Specifications Protection: IP67, IK10
Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F)
Operating Humidity %: 0 ~ 90
System Requirements Operating System: Windows 7 or above
Web Browser: Microsoft® Internet Explorer® 9 or above
Additional info
  • 5 megapixel CMOS image sensor
  • 5MP H.265/HEVC and H.264/AVC high-performance video compression
  • Simultaneous streaming of H.265 and H.264 encoded streams
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • DWDR function up to 70dB
  • High efficiency IR LED, radiant distance up to 30m
  • Day & Night (IR cut removable)
  • Digital I/O : 1 in, 1 out
  • ONVIF Profile S supported
  • IP67 rain and dust resistan
  • Vandal resistant approve
