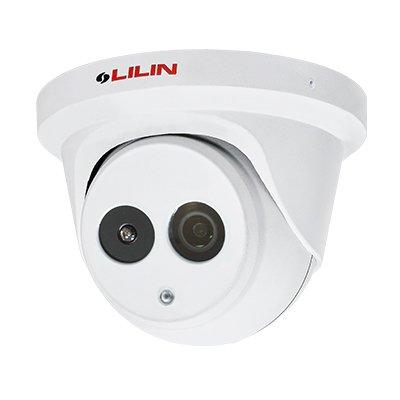

LILIN P3T6522E2 Dual Lens Temperature Measuring Camera
Technical Specification
Features:
- Make: LILIN
- Model code: P3T6522E2
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour
- Resolution: 2 MP resolution
Additional info:
Dual lens design, provide temperature information and color image information Support high temperature alert setting, when temperature exceed defined temperature will trigger alarm Support multi-point high temperature alarm setting, trigger alarm when multiple areas exceed the set temperature Support to set the temperature range of the measured object, and the basic temperature adjustment settings Support multiple alarm output and Smart Event logic output Provide ¼ inch PTZ adapter, can be used with camera tripod Support PoE and DC 12v power supply to reduce wiring problems Provide complete API to integrate temperature and alarm information
Read more| Make | LILIN |
|---|---|
| Manufacturer | LILIN |
| Category | IP Cameras products |
| Model code | P3T6522E2 |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour Resolution: 2 MP resolution Sensitivity Lux: 0.01 Motion Activated: 1 Focal Length mm: 2.8 Wide Dynamic Range: 1 Picture Elements HxV: 1945 x 1097 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/30(1/25)s – 1/30000s S/ N (Signal/ Noise) Ratio dB: > 50 Compression Type: H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 4.3W (12 V DC) / 5.2W (PoE) |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10/100 Mbps Base-T, RJ-45 Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , SDDP, Bonjour , 802.1x, SSL/TLS |
| Physical Specifications |
Weight g: 410 Dimensions mm: Ø115 × 91 |
| Environmental Specifications |
Protection: IK10 Operating Temperature oC: 0 ~ 40 C (32 ~ 104 F) Operating Humidity %: 0 ~ 90 |
| System Requirements |
Operating System: Windows 7 or above Web Browser: Microsoft® Internet Explorer® 9 or above |
| Additional info |
|
