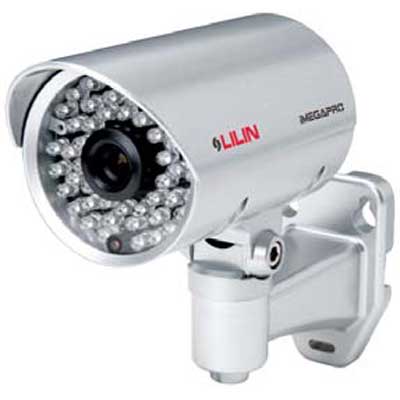

LILIN IPR-722S4.3 H.264 and Motion JPEG network camera
Technical Specification
- Make: LILIN
- Model code: IPR-722S4.3
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution: 1920 x 1080 resolution
IPR-722S4.3 is a day & night HD IR IP camera with full HD 2 megapixel CMOS image sensor. Within the main profile four individual streams are available; two H.264 streams; one at 1080p resolution the other at 480p and two JPEG streams; 480p and CIF resolution respectively. It has 8 privacy zones to block out parts of the video, ideal for applications such as chip and pin terminals.
Read more| Make | LILIN |
|---|---|
| Manufacturer | LILIN |
| Category | IP Cameras products |
| Model code | IPR-722S4.3 |
| Yes | |
| Electrical Specifications |
Voltage: 10W Power Consumption: 12VDC |
| Network Properties | Network Protocols: IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, AR |
| Physical Specifications |
Weight g: 600 Dimensions mm: 82 x 72.5 x 154 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -35 ~ +50 |
| System Requirements | Web Browser: Windows Internet Explorer 6, 7, 8 |
| Additional info |
IPR-722S4.3 is a day & night HD IR IP camera with full HD 2 megapixel CMOS image sensor. Within the main profile four individual streams are available; two H.264 streams; one at 1080p resolution the other at 480p and two JPEG streams; 480p and CIF resolution respectively. It has 8 privacy zones to block out parts of the video, ideal for applications such as chip and pin terminals.
|
| Download PDF version | |
