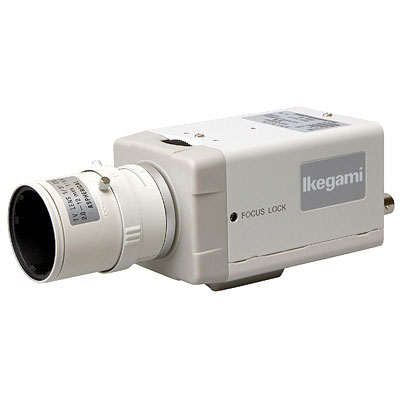

Ikegami ICD-509PAC true day/night CCTV camera
Technical Specification
Features:
- Make: Ikegami
- Model code: ICD-509PAC
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 570
Additional info:
Well designed IR cut filter system. Provides high quality crisp picture reproduction with 570 TVL horizontal resolution under low light conditions.
Read more| Make | Ikegami |
|---|---|
| Manufacturer | IKEGAMI TSUSHINKI CO., LTD. |
| Category | IP Cameras products |
| Model code | ICD-509PAC |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 570 Auto Iris: AI Sensitivity lux: 0.037 Lens Mount: CS mount Picture Elements HxV: 752 x 582 Auto Gain Control: AutoGainControl White Balance: WhiteBalance S/ N (Signal/ Noise) Ratio dB: 52 Synchronisation: Internal, Line-lock Signal Mode: PAL Video Output: 1 Vpp, 75 ohms |
|
| Electrical Specifications |
Voltage: 230 V AC Power Consumption: 4.6 W |
| Physical Specifications |
Dimension mm: 62 x 55 x 100 Weight g: 680 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 30 ~ 90 |
| Additional info | Well designed IR cut filter system. Provides high quality crisp picture reproduction with 570 TVL horizontal resolution under low light conditions. |
