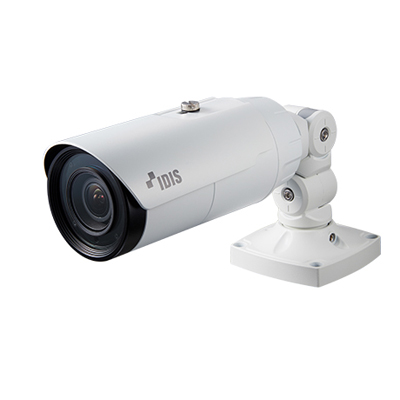

IDIS DC-T3533HRX 5M bullet camera (IR, MFZ, TDN, IP66, Heater, WDR)
Technical Specification
Features:
- Make: IDIS
- Model code: DC-T3533HRX
- Chip Inch Size: 1/2 inch
- Colour Type: Colour / Monochrome
- Resolution: 5 MP resolution
Additional info:
Easy installation with DirectIP NVR 5MP (2592 x 1944) resolution Motorized Vari-focal lens (f=3.6 - 10mm) micro SD/SDHC/SDXC Two-way audio Alarm in / out IK10 / IP66 supports Built-in heater PoE (IEEE 802.3af Class 3), 12V DC Day and night (ICR) True wide dynamic range (WDR) IR LED (Distance : 30m) 3-axis mechanical design for installation Supports ONVIF
Read more| Make | IDIS |
|---|---|
| Manufacturer | IDIS |
| Category | IP Cameras products |
| Model code | DC-T3533HRX |
|
Chip Inch Size: 1/2 inch Colour Type: Colour / Monochrome Resolution: 5 MP resolution Digital (DSP): Digital Specialist Type: Megapixel Sensitivity Lux: 0 ~ 0.15 Auto Iris: AI Direct Drive: DD Motion Activated: MotionActivated Focal Length mm: 3.6 ~ 10 Wide Dynamic Range: WideDynamicRange Back Light Compensation: BackLightCompensation White Balance: WhiteBalance Electronic Shutter Range: 1/30 ~ 1/10000 S/ N (Signal/ Noise) Ratio dB: > 45 Compression Type: H.265, H.264 (MP), M-JPEG |
|
| Electrical Specifications |
Voltage: 12 V DC / PoE Power Consumption: 11.4 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: RJ45 (10/100/1000BASE-T) Network Protocols: DirectIP™ Mode : DirectIP Protocol / Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Physical Specifications |
Weight g: 1,170 Dimensions mm: 74 x 309 |
| Environmental Specifications |
Protection: IP66, IK10 Operating Temperature oC: -40 ~ +55 C (-40 ~ +131 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
