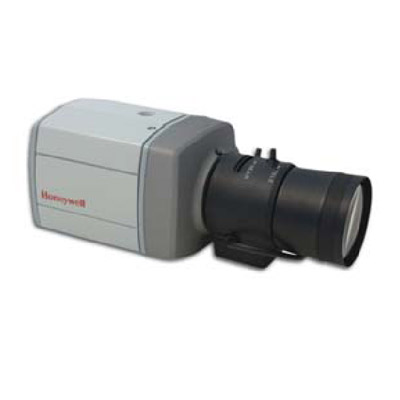

Honeywell Security HCU484X 480 TVL
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCU484X
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 480
Additional info:
The HCU484X can be quickly set up and configured using the built-in OSD menu. This is used to select the wide dynamic presets and set up the dynamic range, the RS485, day night set up, the white balance, camera ID, AGC, line lock phase, digital slow shutter, DC lens drive level and shutter speed.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCU484X |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 480 Auto Iris: AI Sensitivity lux: 0.4 Direct Drive: DD Lens Mount: CS mount Focal Length mm: 5 ~ 50 Mount Type: Wall, Ceiling Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 720 x 540 Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/60 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 52 Synchronisation: Line-lock Signal Mode: PAL Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 2.5 W |
| Physical Specifications |
Dimension mm: 67.22 x 61.90 x 99.93 Weight g: 500 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +45 Operating Humidity %: 20 ~ 80 |
| Additional info | The HCU484X can be quickly set up and configured using the built-in OSD menu. This is used to select the wide dynamic presets and set up the dynamic range, the RS485, day night set up, the white balance, camera ID, AGC, line lock phase, digital slow shutter, DC lens drive level and shutter speed. |
