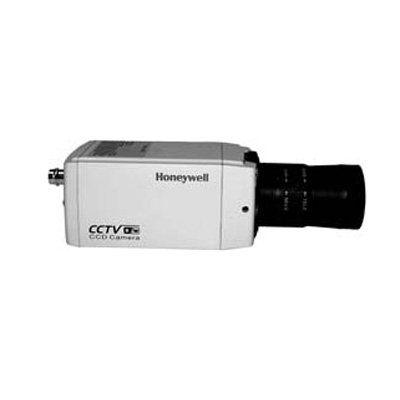

Honeywell Video Systems HCM405LX standard resolution black and white CCTV camera
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCM405LX
- Chip Inch Size ": 1/3 inch
- Colour Type: Monochrome
- Resolution TVL: 400
Additional info:
Honeywell Video Systems HCM405LX is a standard resolution black and white CCTV camera.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCM405LX |
|
Chip Inch Size ": 1/3 inch Colour Type: Monochrome Resolution TVL: 400 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.05 @ F1.2 Direct Drive: DD Lens Mount: C/CS mount Picture Elements HxV: 500 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl Electronic Shutter range: 1/50 ~ 100,000 S/ N (Signal/ Noise) Ratio dB: 50 Synchronisation: Line-Lock Signal Mode: CCIR Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 230 VAC Power Consumption: 3.2 W |
| Physical Specifications |
Dimension mm: 68 x 56 x 140 Weight g: 380 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 20 ~ 80 |
| Additional info | Honeywell Video Systems HCM405LX is a standard resolution black and white CCTV camera. |
