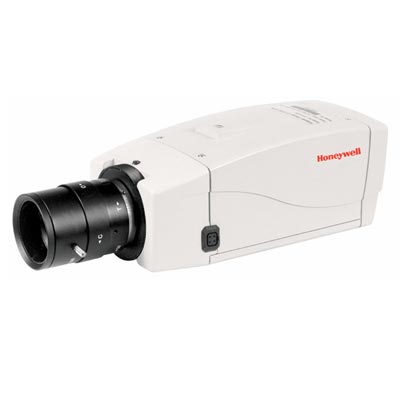

Honeywell Security HCM404LX low vision application cctv camera
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCM404LX
- Chip Inch Size ": 1/3 inch
- Colour Type: Monochrome
- Resolution TVL: 400
Additional info:
Honeywell Security HCM404LX is a low vision application CCTV camera.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCM404LX |
|
Chip Inch Size ": 1/3 inch Colour Type: Monochrome Resolution TVL: 400 Digital (DSP): Digital Auto Iris: AI Direct Drive: DD Sensitivity lux: 0.05 Lens Mount: C/CS mount Focal Length mm: 5.0 ~ 50 Mount Type: Wall, Ceiling Picture Elements HxV: 500 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl Electronic Shutter range: 1/50 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal, Line-lock Signal Mode: CCIR Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 2 W |
| Physical Specifications |
Dimension mm: 68 x 56 x 120 Weight g: 350 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 20 ~ 80 |
| Additional info | Honeywell Security HCM404LX is a low vision application CCTV camera. |
