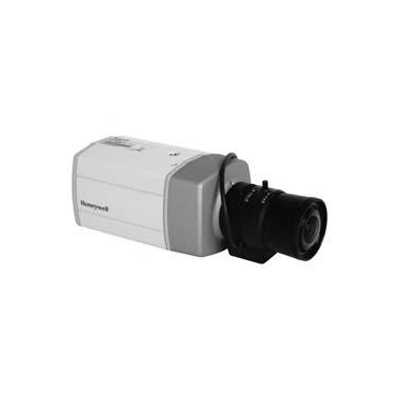

Honeywell Video Systems HCD545X day/night high resolution colour camera
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCD545X
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 540
Additional info:
Other Features : - 1/3" colour CCD with DSP. Moving IR cut filter switched using internal logic or external control. Automatic Electronic Shutter (AES). Improved low light sensitivity using external IR illumination.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCD545X |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 540 Auto Iris: AI Direct Drive: DD Sensitivity lux: 0.1 Focal Length mm: 2.8 ~ 10 Mount Type: Wall, Ceiling Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Gamma Correction: 0.45 Electronic Shutter range: 1/50 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 50 Synchronisation: Line Lock Signal Mode: PAL Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 230 VAC Power Consumption: 4.5 W |
| Physical Specifications | Weight g: 500 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 0 ~ 85 |
| Additional info | Other Features : - 1/3" colour CCD with DSP. Moving IR cut filter switched using internal logic or external control. Automatic Electronic Shutter (AES). Improved low light sensitivity using external IR illumination. |
