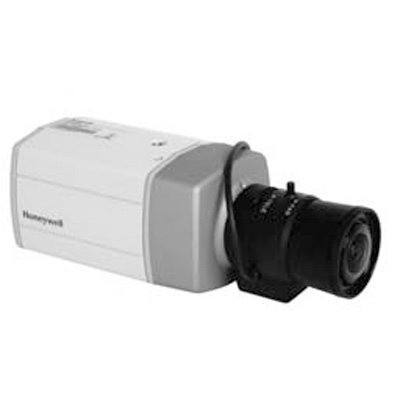

Honeywell Video Systems HCD544PVX true day/night high resolution colour camera with 540 TVL
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCD544PVX
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 540
Additional info:
The Honeywell HCD544PVX true day/night camera is ideally suited for use in 24/7 surveillance applications. The HCD544PVX adapts to varying lighting conditions to ensure the highest quality picture even in very low light. When the light level drops too low for accurate video identification in colour, the camera automatically moves the IR cut filter out of the optical path and then switches to black and white video to capture more detail using the increased sensitivity of the CCD to IR light. The camera uses internal logic or an external LAMP connector to control the switchoverfrom colour to black and white. This improves the reliability of the operation of the camera in difficult installations or lighting conditions.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCD544PVX |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 540 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.1 @ F1.2 Direct Drive: DD Lens Mount: C/CS mount Focal Length mm: 5.0 ~ 50 Mount Type: Wall / Ceiling Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/50 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 50 Synchronisation: Line-lock Signal Mode: PAL Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 4.5 W |
| Physical Specifications | Weight g: 500 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: Weather Resistant Operating Humidity %: 0 ~ 85 |
| Additional info | The Honeywell HCD544PVX true day/night camera is ideally suited for use in 24/7 surveillance applications. The HCD544PVX adapts to varying lighting conditions to ensure the highest quality picture even in very low light. When the light level drops too low for accurate video identification in colour, the camera automatically moves the IR cut filter out of the optical path and then switches to black and white video to capture more detail using the increased sensitivity of the CCD to IR light. The camera uses internal logic or an external LAMP connector to control the switchoverfrom colour to black and white. This improves the reliability of the operation of the camera in difficult installations or lighting conditions. |
