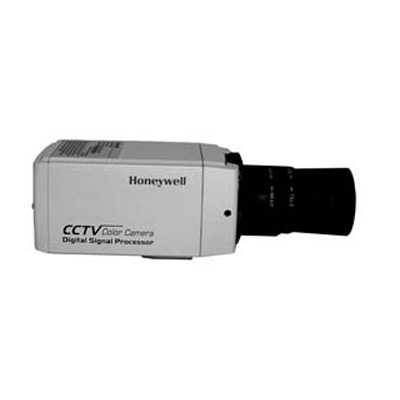

Honeywell Video Systems HCC485LX high resolution colour CCTV camera with 480 TVL
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCC485LX
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour
- Resolution TVL: 480
Additional info:
Honeywell Video Systems HCC485LX is a high resolution colour CCTV camera with 480 TVL.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCC485LX |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour Resolution TVL: 480 Digital (DSP): Digital Auto Iris: AI Direct Drive: DD Sensitivity lux: 0.4 lux @ F1.2 Lens Mount: C/CS mount Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/50 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 50 Synchronisation: Line-Lock Signal Mode: PAL |
|
| Electrical Specifications |
Voltage: 230 VAC Power Consumption: 4.2 W |
| Physical Specifications |
Dimension mm: 68 x 56 x 140 Weight g: 410 |
| Environmental Specifications |
Operating Temperature oC: -10 - +50 Operating Humidity %: 20 ~ 80 |
| Additional info | Honeywell Video Systems HCC485LX is a high resolution colour CCTV camera with 480 TVL. |
