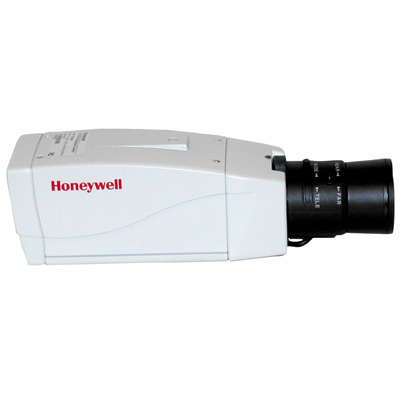

Honeywell Security HCC484LX 480 TVL
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HCC484LX
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour
- Resolution TVL: 480
Additional info:
Honeywell Video Systems E Series high resolution color cameras are ideally suited for use in day-to-day surveillance applications.
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HCC484LX |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour Resolution TVL: 480 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.4 Direct Drive: DD Lens Mount: C/CS mount Focal Length mm: 5.0 ~ 50 Mount Type: Wall / Ceiling Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Electronic Shutter range: 1/60 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Line-lock Signal Mode: PAL Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 3.5 W |
| Physical Specifications |
Dimension mm: 68 x 56 x 120 Weight g: 380 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Protection: Weather Resistant Operating Humidity %: 20 ~ 80 |
| Additional info | Honeywell Video Systems E Series high resolution color cameras are ideally suited for use in day-to-day surveillance applications. |
