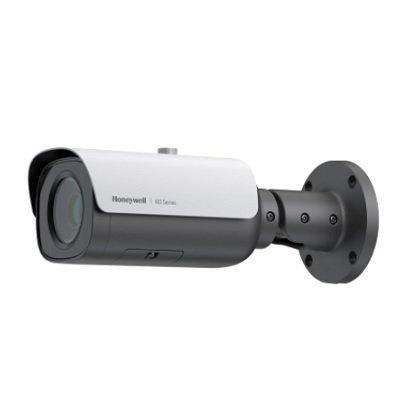

Honeywell Security HC60WB5R5 5MP Network TDN WDR IR Outdoor Bullet Camera
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HC60WB5R5
- Series: 60 Series
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
Additional info:
1/2.8" 5MP progressive scan imager 5~50 mm, F1.9~F2.1, MFZ lens Angle of view 45~7° (H) – 35~5° (V) Best Main Stream: 2560x1920 (1 ~ 25/30fps), 1920x1080 (1 ~ 50/60fps) Best Sub Stream: 2560x1920 (1 ~ 25/30fps), 1920x1080 (1 ~ 50/60fps) Best Third Stream: 1280x960 (1 ~ 25/30fps), 1280x720 (1 ~ 50/60fps) Wide Dynamic Range (WDR) up to 120 dB
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HC60WB5R5 |
| Series | 60 Series |
| Yes | |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, POE Power Consumption: 25.5 W |
| Network Properties |
Image Frame Rate: 25 fps ~ 60 fps Interface: 10 Base-T / 100 Base-TX Ethernet (RJ-45) Network Protocols: IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP / Multicast, CIFS / SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Physical Specifications |
Weight g: 2,530 Dimensions mm: 106 x 110 x 289 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP66, IP67, IK10 Operating Humidity %: 0 ~ 90 |
| System Requirements |
Operating System: Microsoft Windows 10 Web Browser: Chrome 79.0 Internet Explorer 11 |
| Additional info |
|
