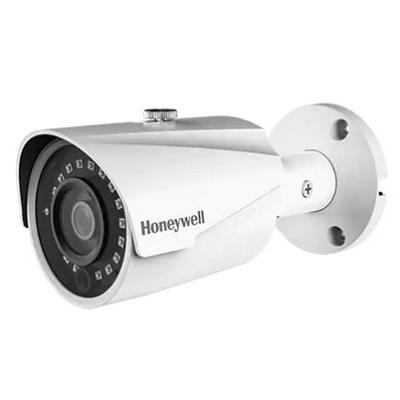

Honeywell Security HBW4PER1 4MP WDR IR IP Bullet Camera

Technical Specification

Features:
  • Make: Honeywell Security
  • Model code: HBW4PER1
  • Series: Performance Series
  • Chip Inch Size: 1/3 inch
  • Colour Type: True Day / Night
Read more
Additional info:

1/3" 4 MP progressive scan imager 2688 x 1520 resolution 3.6 mm Fixed lens True day/night (IR-cut filter) Wide Dynamic Range up to 120 dB Low-light performance down to 0.08 lux (color) or 0 lux with IR LEDs on Up to 98 ft (30 m) IR illumination, depending on scene reflectance H.265 Smart Codec

Read more
Make Honeywell Security
Manufacturer Honeywell
Category IP Cameras products
Model code HBW4PER1
Series Performance Series
Yes
Electrical Specifications Voltage: 12 V DC, POE
Power Consumption: 5.7 W
Network Properties Image Frame Rate: 20 fps ~ 30 fps
Interface: RJ-45 (10/100BASE-T)
Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP; DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS
Physical Specifications Weight g: 380
Dimensions mm: 165 x 71
Environmental Specifications Protection: IP66
Operating Temperature oC: -30 ~ +55 C (-22 ~ +131 F)
Operating Humidity %: 0 ~ 95
System Requirements Operating System: Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit
Web Browser: Internet Explorer (11.0+)
Additional info
  • 1/3" 4 MP progressive scan imager
  • 2688 x 1520 resolution
  • 3.6 mm Fixed lens
  • True day/night (IR-cut filter)
  • Wide Dynamic Range up to 120 dB
  • Low-light performance down to 0.08 lux (color) or 0 lux with IR LEDs on
  • Up to 98 ft (30 m) IR illumination, depending on scene reflectance
  • H.265 Smart Codec
