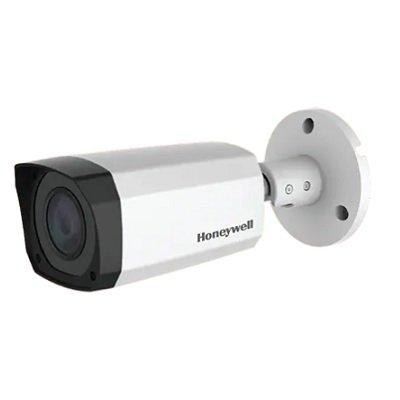

Honeywell Security HB276HD4 4MP HQA TDN IR MFZ Bullet Camera
Technical Specification
Features:
- Make: Honeywell Security
- Model code: HB276HD4
- Series: Performance Series
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
Additional info:
3.6 mm fixed lens (HB74HD4) or 2.7-12 mm VF lens (HB276HD4) IR LEDs provide up to 131 ft (40 m) for HB74HD4 or 200 ft (60 m) for HB276HD4 of illumination in dimly lit or nighttime scenes (depending on scene reflectance) Smart IR technology provides even distribution of IR Weatherproof (IP66) camera housing –22°F to 140°F (–30°C to 60°C) working temperature Plug-and-play compatible with Honeywell HRHT 4/8/16-Channel Hybrid 4 MP HQA DVRs
Read more| Make | Honeywell Security |
|---|---|
| Manufacturer | Honeywell |
| Category | IP Cameras products |
| Model code | HB276HD4 |
| Series | Performance Series |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 4.1MP Digital (DSP): 1 HD: 1 Sensitivity lux: 0 ~ 0.01 Focal Length mm: 2.7 ~ 12 Wide Dynamic Range: 1 Picture Elements HxV: 2560 x 1440 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/3 ~ 1/100 000 s S/ N (Signal/ Noise) Ratio dB: 65 Signal Mode: PAL/NTSC |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 15.4 W |
| Physical Specifications |
Dimension mm: 215 x 80 x 73 Weight g: 650 |
| Environmental Specifications |
Operating Temperature oC: –30 ~ 60 C (-22 ~ 140 F Protection: IP66 Operating Humidity %: 0 ~ 90 |
