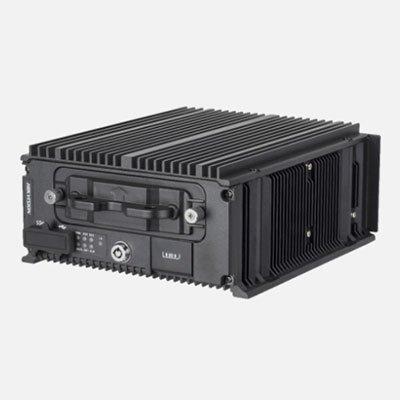

Hikvision DS-MP7608H 1080p H.265 mobile HDVR
Technical Specification
- Make: Hikvision
- Model code: DS-MP7608H
- Channels: 8 channels
- Hybrid IP inputs: 8
- Recording Mode: Real Time / Timelapse / Event recording
User-friendly GUI providing easy and flexible operations Pluggable 3G/4G module and built-in Wi-Fi module providing flexible data transmission solutions Supports connecting high-definition TVI camera 8 analogue & 8 IP channels of audio & video inputs connectable; each channel supports up to 1080p resolution with H.264/H.265 encoding technology Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc. Specialised aviation connectors ensuring signal stability Ignition startup and delay (0 h to 6 h) shutdown Battery protection avoids vehicle from running out of battery Power-off protection prevents key data loss Tensile aluminium chassis with no fan design well adaptable to working environment Software-based firewall supported GNSS (Global Navigation Satellite System) module precisely positioning the vehicle via the satellite and recording the location information in the stream Stores videos on SD card when the HDD/SSD is damaged Support standard 256 GB Micro SD/SDHC/SDXC card storage Dummy HDD with USB interface supporting intelligent temperature control and data export Output bandwidth limit configurable
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-MP7608H |
|
Channels: 8 channels Hybrid IP inputs: 8 Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: 1 Alarm I/O: 4 in, 2 out Storage Capacity GB: 2048 GB storage Image per second (IPS): PAL : 25 / NTSC : 30 fps storage rate Compression Type: H.264/H.265 Resolution: 1080p resolution Signal Mode: PAL / NTSC External Storage: USB Audio Recording and Properties: G.711/G.722.1 Recording System: HDD Type of Multiplexer Functions: Recording IP Storage rate (fps): PAL : 25 / NTSC : 30 |
|
| Physical Specifications |
Dimensions mm: 202 x 268 x 94 Weight kg: 3.66 |
| Electrical Specifications |
Voltage: 9 ~ 32 V DC Power Consumption: < 99 W |
| Environmental Specifications | Operating Humidity %: 10 ~ 95 |
| Additional info |
|
| Download PDF version | |
