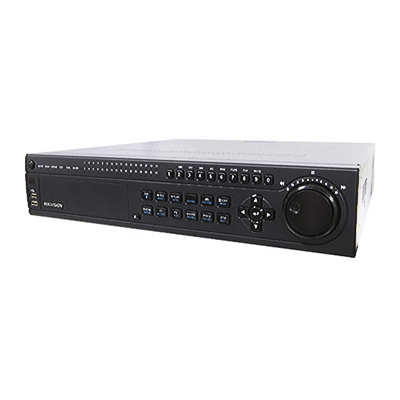

Hikvision DS-8124HFSI-SH standalone DVR with H.264 video compression
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-8124HFSI-SH
- Channels: 24 channels
- Inbuilt Multiplexer: InbuiltMultiplexer
- Multiplexer Type: full-duplex
Additional info:
H.264 video compression WD1 resolution real time recording HDMI/VGA output at 1920×1080P resolution Dual Gigabit network interface Up to 16-ch synchronous playback HDD quota and group management
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-8124HFSI-SH |
|
Channels: 24 channels Inbuilt Multiplexer: InbuiltMultiplexer Multiplexer Type: full-duplex Alarm I/O: 16 in, 8 out Storage Capacity GB: 4000 GB storage Image per second (IPS): 25 fps / 30 fps fps storage rate Compression Type: H.264 Resolution: 1080P resolution Signal Mode: PAL / NTSC External Storage: USB |
|
| Physical Specifications |
Dimensions mm: 445 x 470 x 95 Weight kg: 8 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 40 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
| Download PDF version | |
