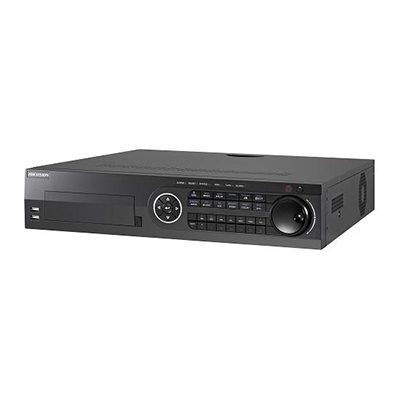

Hikvision DS-8104HGHI-SH Turbo HD DVR
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-8104HGHI-SH
- Series: Turbo HD DVR
- Channels: 4 channels
- Recording Mode: Real Time / Timelapse / Event recording
Additional info:
H.264 & Dual-stream video compression Support both HD-TVI and analogue cameras with adaptive access Fullchannel@720P resolution non-real-time recording HDMI and VGA output at up to 1920×1080P resolution Long transmission distance over coax cable Support up to 16-ch synchronous playback at 720P resolution
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | IP Cameras products |
| Model code | DS-8104HGHI-SH |
| Series | Turbo HD DVR |
|
Channels: 4 channels Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 4 out Storage Capacity GB: 6000 GB storage Compression Type: H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC External Storage: 3 × USB 2.0 Audio Recording and Properties: G.711u Recording System: HDD Type of Multiplexer Functions: Playback IP Ready: Yes |
|
| Physical Specifications |
Dimensions mm: 445 x 470 x 90 Weight kg: < 8 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: < 30 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
| Download PDF version | |
